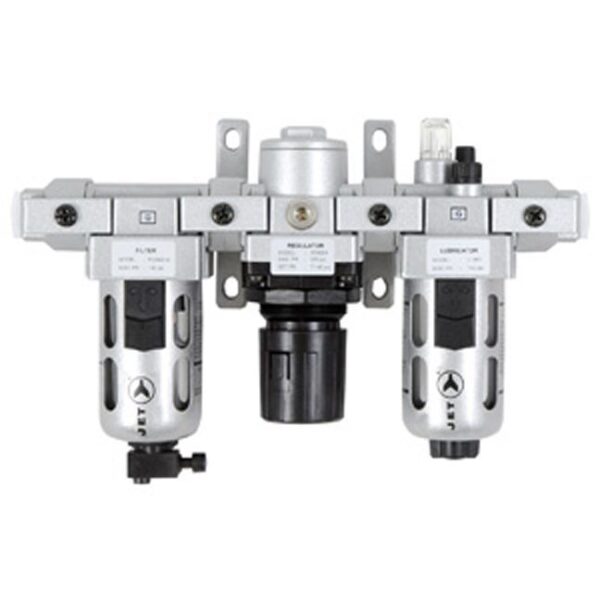

Jet 408855 AFRLMI38 3-Piece Air Filter/Regulator/Lubricator 3/8″ NPT

Description

Jet 408855 AFRLMI38 3-Piece Air Filter/Regulator/Lubricator 3/8″ NPT

Jet 408855 AFRLMI38 3-Piece Air Filter/Regulator/Lubricator 3/8″ NPT:

Features;

• Product no. 408855
• Model no. AFRLMI38
• 3-Piece assembly including all 3 individual components
• Components are attached in series:
  • • • Using spacers and piping adaptors
• Individual are components easily removable / mountable without disturbing the pipe line
• Comes complete with wall mounting bracket
• Air filter:
  • • • Designed to eliminate dust, water and other impurities from reaching air tool
      • Extends tool life
• Air regulator:
  • • • Governs air flow to desired PSI air pressure
• Lubricator device:
  • • • Indispensable for air generated equipment
      • Atomizes lubricant into the compressed air
      • Allows lubricant to reach and lubricate the internal parts of the air tool
• Wetted Components:
  • • • Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile

Specifications:

• Maximum Working Air Pressure: 145 PSI
• Ambient Temperature: 0º C to 60º C (32º F to 140º F)
• Inlet Pressure: 105 PSI (7 BAR)
• Set Pressure: 90 PSI (6 BAR)
• Pressure Drop: 17 PSI (1.0 BAR)
• Pressure Adjustment Range: 7 to 145 PSI (0.5 to 10 BAR)
• Bowl Sizes:
  • • • Filter: 1.08 oz (32 ml)
      • Lubricator: 1.93 oz (57 ml)
• Height: 8.66″ (220 mm)
• Max. Flow: 71 CFM (2,000 LPM)
• Port Size: 3/8″
• Pressure Gauge Port Size: 1/8″
• Width: 9.84″ (250 mm)
