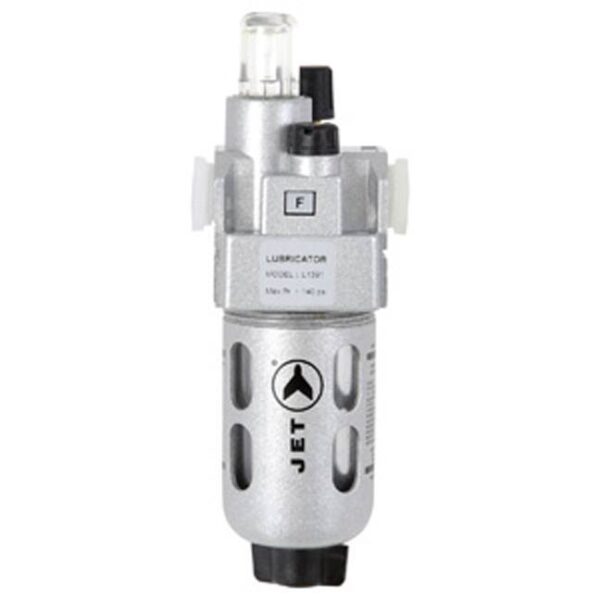

Jet 408833 ALM14 Air Lubricator 1/4″ NPT – Miniature

$71.98

Backorder

UOM: EA SKU: 408833 Categories: , , , UPC: 059629873205

Description

Jet 408833 ALM14 Air Lubricator 1/4″ NPT – Miniature

Jet 408833 ALM14 Air Lubricator 1/4″ NPT – Miniature:

Features:

  • Product no. 408833
  • Model no. ALM14
  • Used to feed lubricants to pneumatic equipment
  • Maintains a constant oil-to-air density over a wide range of flow
  • Fog/ Micro Mist type: up to 50ft pipe runs
  • Die Cast Aluminum Head
  • Polycarbonate bowl with a steel bowl guard
  • Head is fitted with:
        • Oil drop indicator
        • Oil drop controller
        • Oil filling plug
  • Polycarbonate bowl with threaded steel bowl guard
  • Sintered Bronze Filtering element
  • Fully modular for easy maintenance
  • Modular mounting
  • Vertical mounting
  • Designed for maximum flow
  •  Maximum Working Air Pressure: 145 PSI
  • Each unit is 100% factory tested and certified for guaranteed performance
  • Conforms to ISO 6301-1
  • Wetted Components:
        • Aluminum, brass, steel, acetal, stainless steel and nitrile

Specifications:

  • Maximum Working Air Pressure: 145 PSI
  • Ambient Temperature: 0º C to 60º C (32º F to 140º F)
  • Inlet Pressure: 90 PSI (6 BAR)
  • Pressure Drop: 7.5 PSI (0.5 BAR)
  • Lubricator Bowl Size: 0.68 oz (20 ml)
  • Height: 5.31″ (135 mm)
  • Max. Flow: 48 CFM (1,350 LPM)
  • Port Size: 1/4″
  • Width: 1.57″ (40 mm)
  • NOTE: 32 grade oil recommended for best performance

Click here for more Jet Air Filters, Regulators and Lubricators

Additional information

Weight 1.11 lbs
