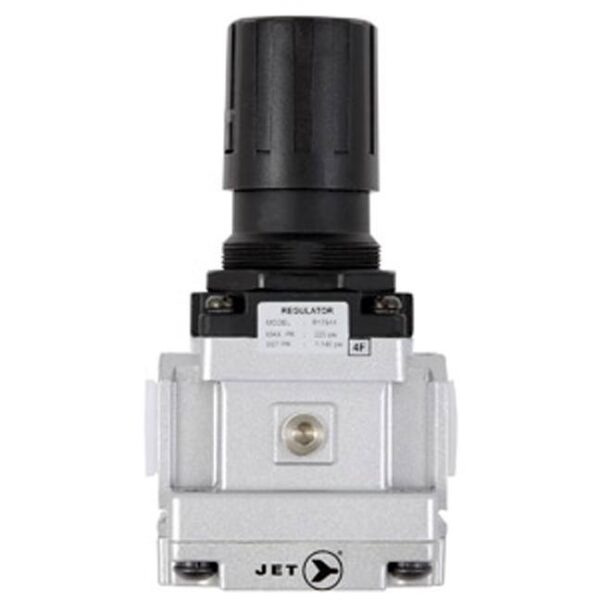

Jet 408826 ARH34 Air Regulator 3/4″ NPT – Heavy Duty

$252.48

Backorder

UOM: EA SKU: 408826 Categories: , , , UPC: 059629873106

Description

Jet 408826 ARH34 Air Regulator 3/4″ NPT – Heavy Duty

Jet 408826 ARH34 Air Regulator 3/4″ NPT – Heavy Duty:

Features:

  • Product no. 408826
  • Model no. ARH34
  • Used to maintain a steady outlet pressure:
        • Unaffected by variations/fluctuations in the inlet pressure
  • Regulators:
        • Step down the air line pressure
        • Can be set at any pressure below the inlet pressure
  • Die cast aluminum body construction
  • Equipped with a non-raising “Press to Lock” adjusting knob for locking at any set pressure
  • Works on a diaphragm-operated relieving type mechanism:
        • With the pressure compensated by balanced poppet
  • Can be installed in any position
  • Fully modular for easy maintenance
  • Modular mounting
  • Designed for maximum flow
  • Each unit is 100% factory tested and certified for guaranteed performance
  • Conforms to ISO 6953-1
  • Wetted Components:
        • Aluminum, brass, steel, acetal, stainless steel and nitrile

Specifications:

  • Maximum Working Air Pressure: 220 PSI
  • Ambient Temperature: 0º C to 60º C (32º F to 140º F)
  • Inlet Pressure: 105 PSI (7 BAR)
  • Supply Pressure: 90 PSI (6 BAR)
  • Pressure Drop: 17 PSI (1.0 BAR)
  • Pressure Adjustment Range: 7 to 145 PSI (0.5 to 10 BAR)
  • Height: 6.97″ (177 mm)
  • Max. Flow: 175 CFM (5,000 LPM)
  • Port Size: 3/4″
  • Pressure Gauge Port Size: 1/4″
  • Width: 3.54″ (90 mm)

Click here for more Jet Air Filters, Regulators and Lubricators

Additional information

Weight 3.27 lbs
