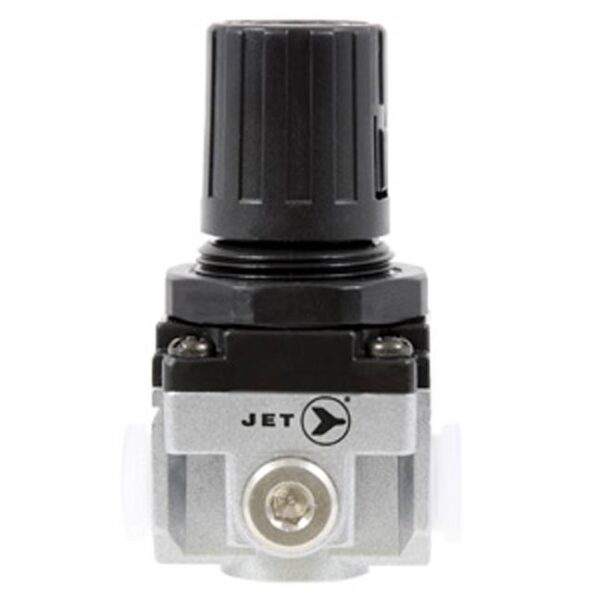

Jet 408818 ARM14 Air Regulator 1/4″ NPT – Miniature

Description

Jet 408818 ARM14 Air Regulator 1/4″ NPT – Miniature

Jet 408818 ARM14 Air Regulator 1/4″ NPT – Miniature:

Features:

• Product no. 408818
• Model no. ARM14
• Used to maintain a steady outlet pressure, unaffected by variations/fluctuations in the inlet pressure
• Regulators:
  • • • Step down the air line pressure
      • Can be set at any pressure below the inlet pressure
• Die cast aluminum body construction
• Equipped with a non-raising “Press to Lock” adjusting knob for locking at any set pressure
• Works on a diaphragm-operated relieving type mechanism:
  • • • With the pressure compensated by balanced poppet
• Can be installed in any position
• Fully modular for easy maintenance
• Modular mounting
• Designed for maximum flow
• Each unit is 100% factory tested and certified for guaranteed performance
• Conforms to ISO 6953-1
• Wetted Components:
  • • • Aluminum, brass, steel, acetal, stainless steel and nitrile

Specifications:

• Maximum Working Air Pressure: 220 PSI
• Ambient Temperature: 0º C to 60º C (32º F to 140º F)
• Inlet Pressure: 105 PSI (7 BAR)
• Supply Pressure: 90 PSI (6 BAR)
• Pressure Drop: 17 PSI (1.0 BAR)
• Pressure Adjustment Range: 7 to 145 PSI (0.5 to 10 BAR)
• Height: 3.19″ (81 mm)
• Max. Flow: 21 CFM (600 LPM)
• Pressure Gauge Port Size: 1/8″
• Width: 1.57″ (40 mm)
