Description

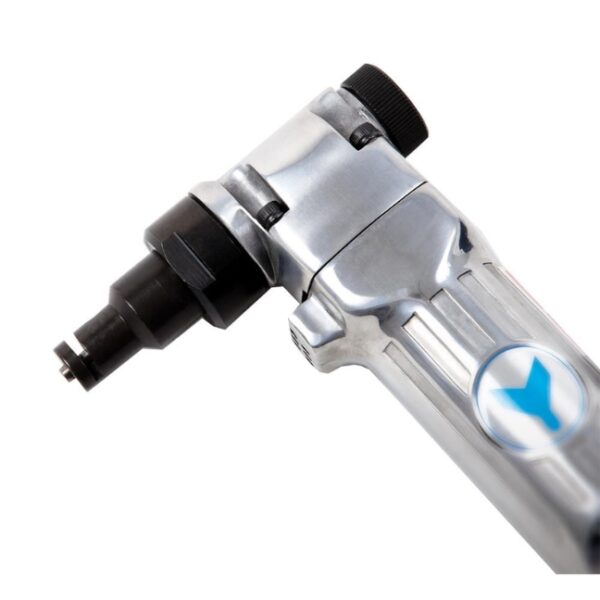

Jet 404153 Heavy Duty Nibbler – Up Stroke Type
Jet 404153 Heavy Duty Nibbler – Up Stroke Type:
Features:
- Product no. 404153
- Model no. AN16
- 90 PSI air pressure recommended for maximum performance
- Powerful .4 horsepower air motor for professional use
- Cuts on the up stroke for reduced punch breakage
- Small diameter cutting head:
-
-
- Permits nibbler to be started away from the edge of a work piece by drilling a 9/16″ hole
-
-
- Position of the cutting head can be set to allow cutting in four directions:
-
-
- Forward
- Reverse
- Right
- Left
-
-
- Nibbler cuts maximum steel thickness:
-
-
- Regular steel 1.2 mm
- Aluminum 1.6 mm
- Stainless Steel 0.8 mm
-
-
- Compact design for use in close quarters
- Standard Accessory: Punch (905461)
Specifications:
- Air Inlet (NPT): 1/4″
- Capacities:
-
-
- Aluminum:13 gauge / .072″
- Steel: .054″ / 17 gauge
-
-
- Horsepower: 0.4 HP
- Min. Hose Size: 3/8″
- Overall Length: 7″
- Product Weight: 2.1 lb (0.95 kg)
- Sound Pressure: 85.5 dBA
- Strokes per Minute: 3,000 SPM
- Vibration: 3.8 m/s²
