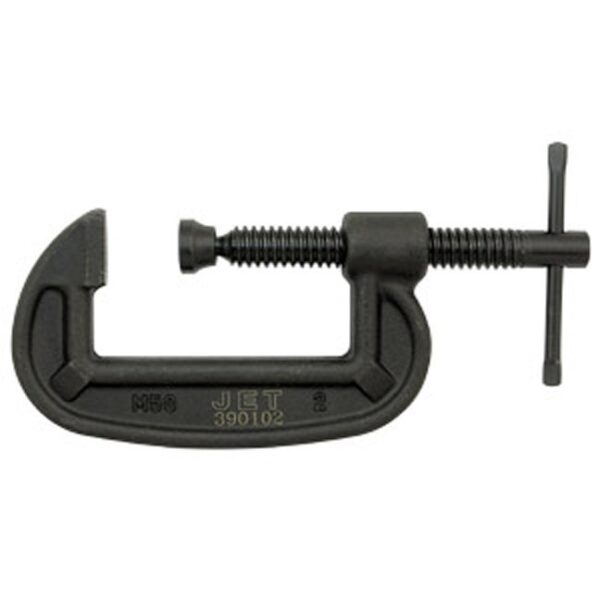

Jet 390102 CC-2 2″ CC Series C-Clamp – Heavy Duty
Jet 390102 CC-2 2″ CC Series C-Clamp – Heavy Duty:
Features:
- Product no. 390102
- Model no. CC-2
- CC Series – Regular Throat Clamp – Heavy Duty
- Made of industrial quality drop forged, heat-treated steel
- Special retaining clips:
-
-
- Secure the heavy duty swivel pads
- Superior to crimped pads
-
-
- Acme threaded screw provides:
-
-
- Smooth operation
- Even clamping pressure
-
-
- Black oxide screw resists welding spatter
Specifications:
- Clamping Pressure: 3,300 lb
- Max. Opening: 2-3/16″
- Throat Depth: 1″
Click here for more Jet C-Clamps
| Comparison Chart for Regular Throat Clamps | ||||
| Product no. | Model no. | Maximum Opening | Throat Depth | Clamping Pressure |
| 390102 | CC-2 | 2-3/16″ | 1″ | 3,330 lbs |
| 390103 | CC-3 | 2-5/8″ | 1-1/2″ | 4,350 lbs |
| 390104 | CC-4 | 4″ | 1-3/4″ | 5,300 lbs |
| 390105 | CC-5 | 4-5/8″ | 2-1/16″ | 5,900 lbs |
| 390106 | CC-6 | 6-1/4″ | 2-1/2″ | 7,650 lbs |
| 390108 | CC-8 | 7-1/2″ | 3-1/4″ | 8,850 lbs |
| 390110 | CC-10 | 9-1/2″ | 4-1/4″ | 9,000 lbs |
| 390112 | CC-12 | 11-9/16″ | 4-1/2″ | 13,000 lbs |
