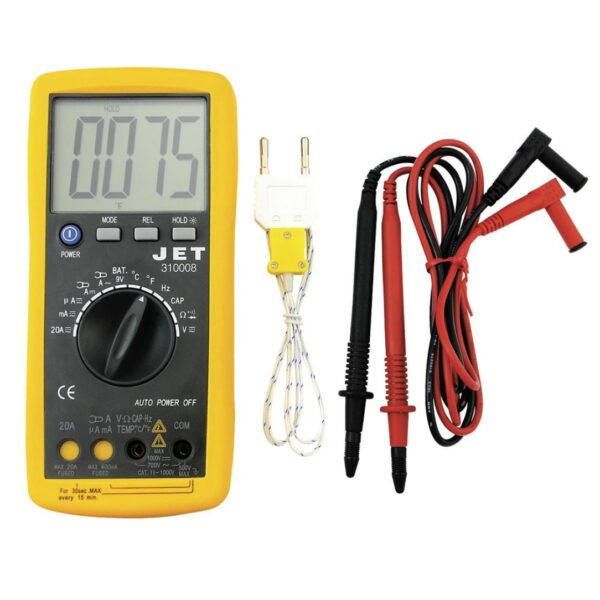

Jet 310008 JDMM-300 Auto Ranging Digital Multimeter

Description

Jet 310008 JDMM-300 Auto Ranging Digital Multimeter

The Jet 310008 JDMM-300 Auto Ranging Digital Multimeter includes:

• Test leads
• K-type thermo-coupler
• 9 Volt battery

Features:

• Product no. 310008
• Model no. JDMM-300
• A versatile meter designed for a wide variety of electrical tests
• Auto shut-off
• Large LCD display
• Low battery indicator
• Overload protection
• TPR shroud protects the meter
• Use with clamp-on adapter for greater versatility
• Automatically sets correct range when test function is selected
• Mechanically prevents incorrect connection of test leads
• Features a data hold function
• Designed to safety standard EN61010-1; CAT II 600V

Specifications:

• AC Current: 400u-4000u-40m-400m-4A-20A
• AC Voltage: 400mV-4V-40V-400V-750V
• Applications:
  • • • AC/DC current, AC/DC voltage, resistance, capacitance,
      • Frequency, temperature, diode check, duty cycle, continuity check
• Capacitance: 40nF-400nF-4uF-40uF-100uF
• Continuity Check:
  • • • Threshold 30 ohms
      • Continuity beeper 2.7 kHz
• DC Current: 400u-4000u-40m-400m-4A-20A
• DC Voltage: 400mV-4V-40V-400V-1000V
• Diode Check:
  • • • Test current of 0.3 mA
      • Open circuit voltage of 1.5 V
• Duty Cycle: 0.1 – 99.9%
• Frequency: 9.999 Hz – 9.999 MHz
• Resistance: 200-4k-40k-400k-4Mohms-40 Mohms
• Temperature: -20°C to 760°C
