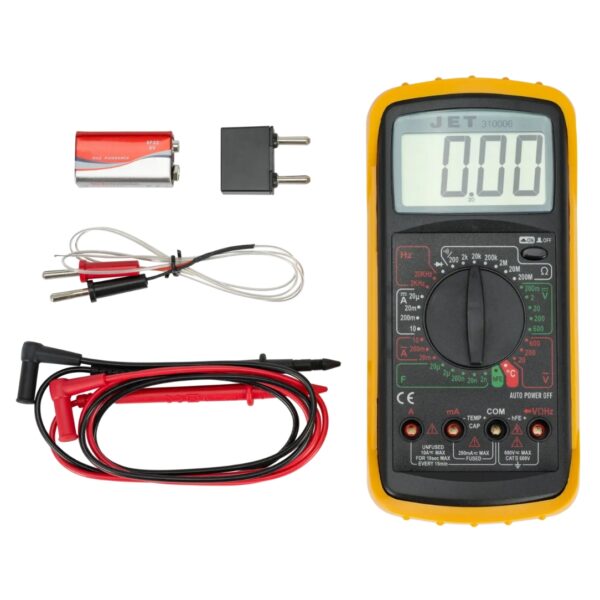

Jet 310006 JDMM-200 Digital Multimeter

Description

Jet 310006 JDMM-200 Digital Multimeter

The Jet 310006 JDMM-200 Digital Multimeter includes:

• Test leads
• K-type thermo-coupler
• 9 Volt battery

Features:

• Product no. 310006
• Model no. JDMM-200
• A versatile meter designed for a wide variety of electrical tests
• Auto shut-off
• Large LCD display
• Low battery indicator
• Overload protection
• TPR (ThermoPlastic Rubber) shroud protects the meter
• Use with clamp-on adapter for greater versatility
• Designed to safety standard IEC-1010; CAT II 600V

Specifications:

• AC Current: 20u-20m-200m-20A
• AC Voltage: 20-200-750V
• Applications:
  • • • AC/DC current, AC/DC voltage, resistance, capacitance,
      • Frequency, temperature, diode check, transistor HFE
• Capacitance: 2n-20n-200n-2u-20uF
• DC Current: 20m-200m-20A
• DC Voltage: 200m-2-20-200-1000V
• Diode Check: 2.8 V / 1 mA
• Frequency: 2k-20 kHz
• HFE: Vce ~3V; 1b ~ 10Ua
• Resistance: 200-2k-20k-200k-2M-20M-200 Mohms
• Temperature: -40°C to 1,000°C
