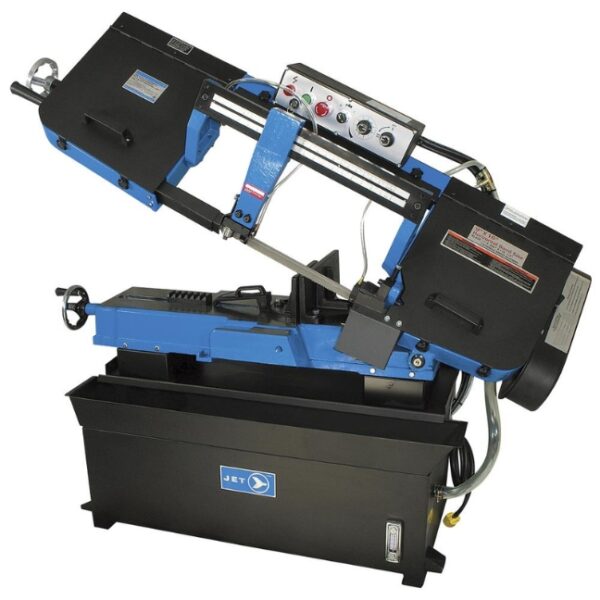

Jet 222335 JHBS-916 9″ x 16″ Horizontal/Vertical Bandsaw

Description

Jet 222335 JHBS-916 9″ x 16″ Horizontal/Vertical Bandsaw

The Jet 222335 9″ x 16″ Horizontal/Vertical Bandsaw includes:

• Variable Pitch Blade
• Blade Chip Brush
• Coolant System
• Tool Kit
• Quick-Set Vise
• Material Stop

Features:

• Product no. 222335
• Model no. JHBS-916
• Designed for industrial use:
  • • • Heavy duty steel and cast iron saw frame
• 1-Piece cast iron saw bed
• Enclosed base, welded for strength
• Precision cast 13″ blade wheels
• Removable chip tray for easy cleaning
• Totally enclosed 1-1/2 HP fan cooled motor with 24 volt controls
• 4-Speed belt drive system
• Hydraulically controlled feed rate with micro adjust switch
• Automatic shut-off limit switch
• Blade guide system features:
  • • • Ball bearing thrust roller
      • Ball bearing blade guides
      • Tungsten carbide slides
• Movable left blade guide arm adjusts from 16″ to 7″ capacity
• Quick set vise adjusts for 90° to 45° angle cuts
• Material stop with 24″ capacity
• Each machine factory tested and set
• Coolant System includes:
  • • • Pump and Reservoir
      • Fully adjustable delivery nozzles at front and rear blade guides
      • Coolant pick-up port in the drive wheel housing
      • Quick-Check gauge for coolant level

Specifications:

• Bed Height: 25″
• Blade Speeds (SFPM): 82, 132, 170 & 235
• Capacity at 45°:
  • • • 6-1/2″ circle
      • 9″ x 6-1/8″ rectangular shape
• Capacity at 90°:
  • • • 9″ circle
      • 4″ x 16″ – 9″ x 12″ rectangular shape
• Floor Space Required: 65″ x 28″
• Motor: 1-1/2 HP, 1 ph, 230V complete with 24 V control panel
• Throat Depth: 9″
• Vise Swivels: 45°
• Wheel Diameter: 13″
• Blade Size: 1″ x 0.032″ x 119-1/2″
