Description

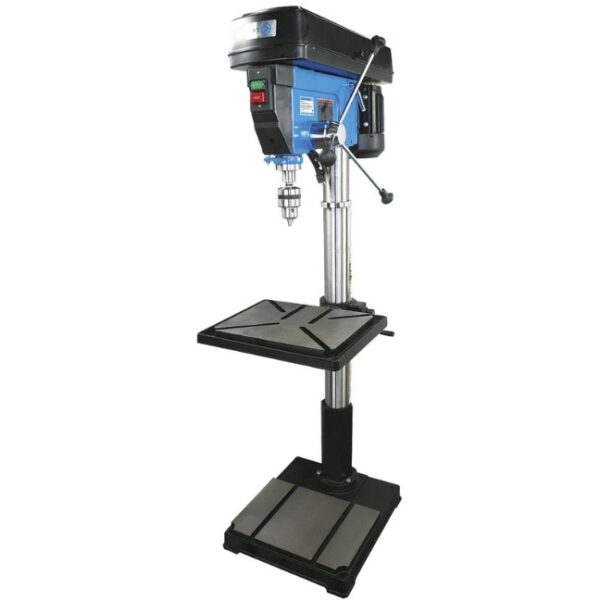

Jet 200357 JDP-22F 22″ 1-1/2 HP 12 Speed Drill Press
The Jet 200357 JDP-22F 22″ 1-1/2 HP 12 Speed Drill Press comes with:
- Drill chuck
- Chuck key
Features:
- Product no. 200357
- Model no. JDP-22F
- 1-1/2 HP motor
- Full 22″ swing for easy drilling of large work pieces
- 12-Speeds for a wide range of drilling applications
- Safety ON/OFF switch features a removable lock-out key
- Fast spindle speed changes – fully hinged belt and pulley cover and fully adjustable motor mount
- Worktable rotates and tilts to 45º right and left
- Convenient quick-release clamp for quick, easy worktable adjustments
- Slots in the worktable and base allow easy clamping of work pieces
- Positive depth setting mechanism features a threaded rod and 2 lock nuts for excellent accuracy
- Built-in work lamp with a separate switch
- Comes standard with a drill chuck and chuck key
Specifications:
- Swing: 122″
- Type: Floor Model
- Chuck Size: 5/8″
- Drilling Capacity: 1-1/4″
- Spindle Travel: 4-1/2″
- Spindle Distance to Base: 49″
- Maximum Spindle Distance to Table: 29″
- Table Size: 16-1/2″ x 18-3/4″
- Table Tilt (Right & Left): 0 to 45º
- Spindle Taper: MT3
- Column Diameter: 3-5/8″
- Number of Spindle Speeds: 12
- Range of Spindle Speeds: 180 to 4,280 RPM
- Overall Height: 69-1/4″
- Base Size: 19-5/8″ x 22-1/2″
- Motor: 1.5 HP, 1PH, 115/230V, 10.0/5.0 Amps, Prewired 115V
