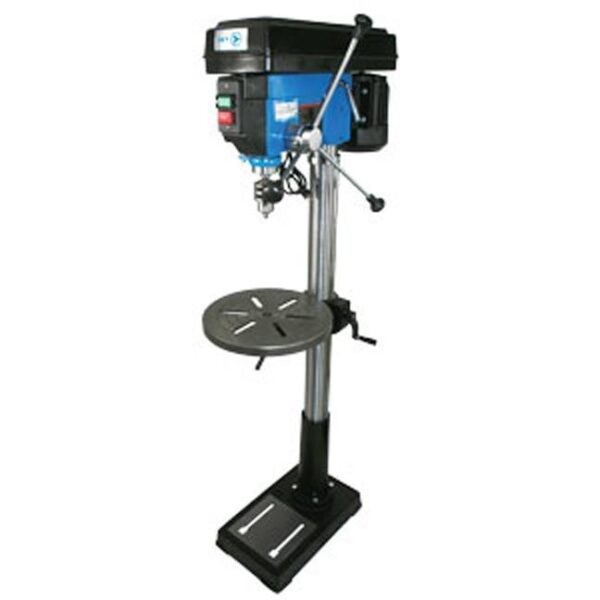

Jet 200278 JDP-17F 17″ 1 HP 16 Speed Floor Drill Press
The Jet 200278 JDP-17F 17″ 1 HP 16 Speed Floor Drill Press comes with:
- Drill chuck
- Chuck key
Features:
- Product no. 200278
- Model no. JDP-17F
- 1 HP motor
- Full 17″ swing for easy drilling of large work pieces
- 16-Speeds for a wide range of drilling applications
- Safety ON/OFF switch features a removable lock-out key
- Fast spindle speed changes – fully hinged belt and pulley cover and fully adjustable motor mount
- Worktable rotates and tilts to 45º right and left
- Convenient quick-release clamp for quick, easy worktable adjustments
- Slots in the worktable and base allow easy clamping of work pieces
- Positive depth setting mechanism features a threaded rod and 2 lock nuts for excellent accuracy
- Built-in work lamp with a separate switch
- Comes standard with a drill chuck and chuck key
Specifications:
- Swing: 17″
- Type: Floor Model
- Chuck Size: 5/8″
- Drilling Capacity: 5/8″
- Spindle Travel: 3-1/4″
- Spindle Distance to Base: 48-3/8″
- Maximum Spindle Distance to Table: 28″
- Table Diameter: 13-3/4″
- Table Tilt (Right & Left): 0 to 45º
- Spindle Taper: MT2
- Column Diameter: 3-1/8″
- Number of Spindle Speeds: 16
- Range of Spindle Speeds: 220 to 3,380 RPM
- Overall Height: 64-1/2″
- Base Size: 12″ x 19-3/4″
- Motor: 1 HP, 1PH, 115/230V, 8.5/4.25Amps, Prewired 115V
