Description

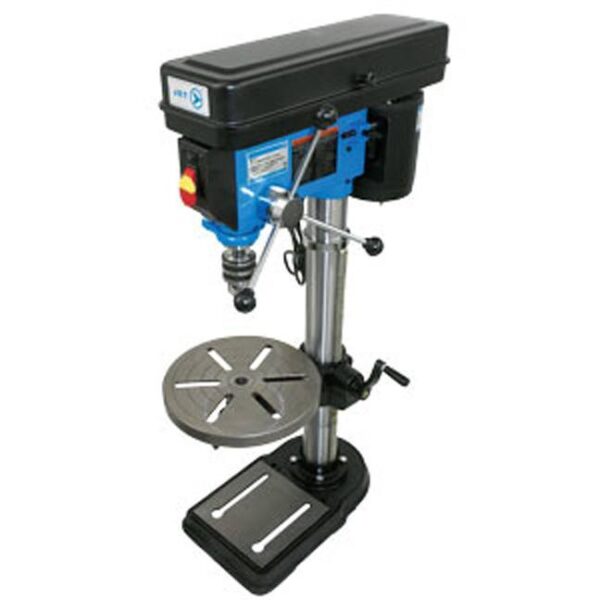

Jet 200225 JDP-13 13-1/2″ 3/4 HP 16 Speed Bench Drill Press
The Jet 200225 JDP-13 13-1/2″ 3/4 HP 16 Speed Bench Drill Press comes with:
- Drill chuck
- Chuck key
Features:
- Product no. 200225
- Model no. JDP-13
- 3/4 HP motor
- 12-Speeds for a wide range of drilling applications
- Safety ON/OFF switch features a removable lock-out key
- Fast spindle speed changes – fully hinged belt and pulley cover and fully adjustable motor mount
- Worktable rotates and tilts to 45º right and left
- Convenient quick-release clamp for quick, easy worktable adjustments
- Slots in the worktable and base allow easy clamping of work pieces
- Positive depth setting mechanism features a threaded rod and 2 lock nuts for excellent accuracy
- Built-in work lamp with a separate switch
- Comes standard with a drill chuck and chuck key
Specifications:
- Swing: 13-1/4″
- Type: Bench Top
- Chuck Size: 5/8″
- Drilling Capacity: 5/8″
- Spindle Travel: 3-1/8″
- Spindle Distance to Base: 24″
- Maximum Spindle Distance to Table: 17-1/2″
- Table Diameter: 11-3/8″
- Table Tilt (Right & Left): 0 to 45º
- Spindle Taper: MT2
- Column Diameter: 2-7/8″
- Number of Spindle Speeds: 12
- Range of Spindle Speeds: 280 to 3,000 RPM
- Overall Height: 38-1/2″
- Base Size: 10″ x 16-1/2″
- Motor: 3/4 HP, 1PH, 115/230V, 5.2/2.6Amps, Prewired 115V
