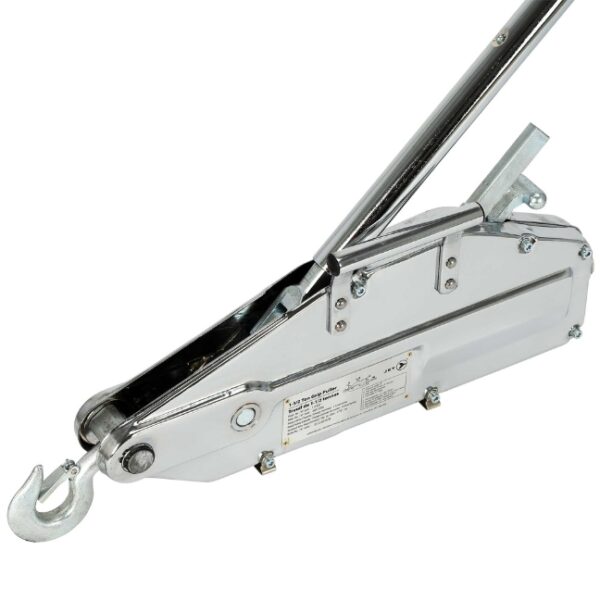

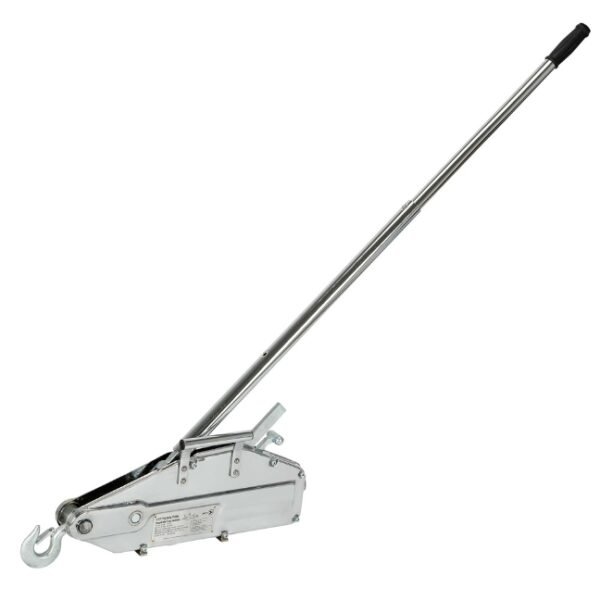

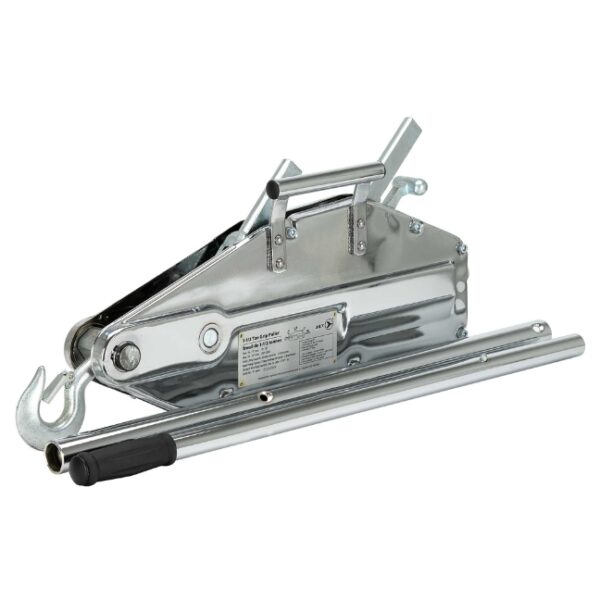

Jet 111137 1-1/2 Ton SUMO Series Grip Puller – Heavy Duty
The Jet 111137 1-1/2 Ton SUMO Series Grip Puller – Heavy Duty:
- Model no. SGP-150A
- Made with a compact, high strength steel housing
- Engineered to be light weight as well as simple and safe to operate
- Use in any position to lift, pull, lower or stretch heavy loads
- Rope clamp system disengages easily with a lever, allowing smooth installation of wire rope
- Built-in overload protection with a shear pin in the forward lever (shear pin breaks when overloaded)
- Broken shear pins can be replaced without removing the load
- Spare shear pins are conveniently stored in the carrying handle
- Wire rope can be fed through 2 sets of wear-resistant interlocking jaws by a single operating lever
- Parallel clamping system with a large surface contact area provides an evenly distributed grip at a lower force for less rope wear and maximum safety
- Parallel clamping system increases operator efficiency by providing a longer rope advance requiring less handle pulling effort
- All SGP Wire Rope Pulling Hoists are tested and have individual serial numbers for easy traceability to a test certificate (included)
- Meets ANSI B30.21 standards (certificate included)
Uses standard ASA and IWRC wire rope (not included) – see cable assembly chart below
JBC Series Beam Clamp Specifications and Comparison Chart |
||||||
| Product no. | Model no. | Lifting Capacity (tons) | Lifting Capacity (lbs) | Pulling Capacity (tons) | Pulling Capacity (lbs) | Dimensions |
| 111136 | SGP-75A | 3/4 | 1,760 | 1.4 | 2,860 | 16-3/4″ x 2-1/2″ x 9″ |
| 111137 | SGP-150A | 1-1/2 | 3,520 | 2.8 | 5,720 | 21-1/2″ x 3-3/4″ x 10-1/4″ |
| 111138 | SGP-300A | 3 | 7,040 | 5.7 | 11,440 | 26″ x 4-1/2″ x 12-1/2″ |
| Product no. | Model no. | Standard Wire Rope Diameter | Operating Rope Advance | Effort at Rated Load (lbs) | Telescopic Handle Length | Weight lbs (kg) |
| 111136 | SGP-75A | 5/16″ | 2.36″ | 64 | 29″ | 39.7 (18) |
| 111137 | SGP-150A | 7/16″ | 2.36″ | 93 | 44″ | 45.2 (20.5) |
| 111138 | SGP-300A | 5/8″ | 1.57″ | 99 | 44″ | 71.6 (32.5) |
Cable Assemblies (wire rope) for Wire Rope Pullers – Selection Chart |
|||||
| Product no. | Model no. | Wire Size | Wire Rope Length | Fits Product no. | Weight lbs (kg) |
| 111152 | SGP-75A | 5/16″ | 66 ft. | 111136 | 6.6 (3) |
| 111153 | SGP-150A | 7/16″ | 66 ft. | 111137 | 27.7 (12.6) |
| 111154 | SGP-300A | 5/8″ | 66 ft. | 111138 | 54.7 (24.8) |
| 111162 | SGP-75A | 5/16″ | 100 ft. | 111136 | 25.5 (11.6) |
| 111163 | SGP-150A | 7/16″ | 100 ft. | 111137 | 28.3 (12.9) |
Cable assemblies must be ordered separately.
