Description

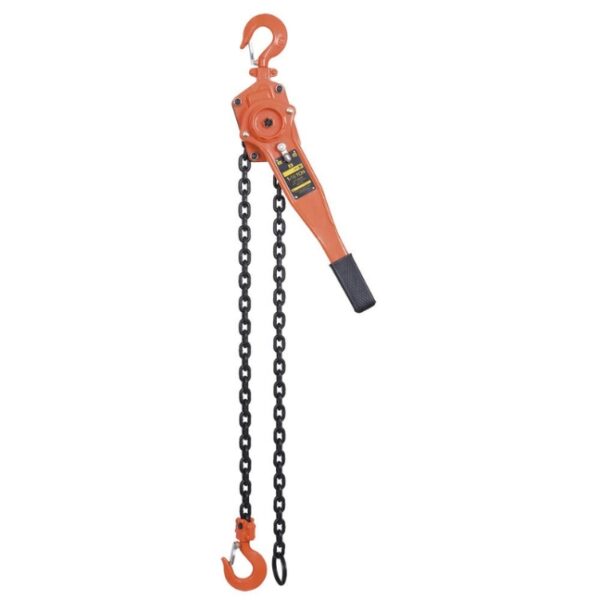

Jet 110303 1-1/2 Ton 5′ Lift VLP Series Lever Chain Puller
The Jet 110303 1-1/2 Ton 5′ Lift VLP Series Lever Chain Puller:
- Model no. VLP-150
- Product no. 110303
- Impact-resistant, cold-formed, stamped steel housing
- Equipped grade 80 load chain
- Hardened steel roller bearings support load for easier operation
- Weston-style brake with dual pawl for safe, reliable operation
- Premium grade, non-asbestos brake discs ensure long life
- Top and bottom safety hooks are designed to bend slowly to provide warning of overloads
- Deformation indicators on the hooks allow accurate measurement and easy maintenance
- Tested to 150% of rated capacity – certificate included
- Complies with ANSI B30.16 standards
- ISO 9001-2000 certified factory
VLP Series Lever Chain Puller Comparison & Selection Charts
| Model no. | Product no. |
Rated Lifting Capacity | Standard Lift | Number of Falls | Load Chain Diameter |
| VLP-75 | 110302 |
3/4 ton | 5 ft. | 1 | 6.0 mm |
| VLP-75-10 | 110306 | 3/4 ton | 10 ft. | 1 | 6.0 mm |
| VLP-150 | 110303 | 1-1/2 ton | 5 ft. | 1 | 8.0 mm |
| VLP-150-10 | 110307 | 1-1/2 ton | 10 ft. | 1 | 8.0 mm |
| VLP-300 | 110304 | 3 ton | 5 ft. | 1 | 10.0 mm |
| VLP-300-10 | 110308 | 3 ton | 10 ft. | 1 | 10.0 mm |
| Model no. | Product no. | Minimum Distance Between Hooks | Force Required to Lift Capacity | Lever Length | Weight lbs(kg) |
| VLP-75 | 110302 |
12″ | 31 lbs | 12″ | 14 (6.4) |
| VLP-75-10 | 110306 |
12″ | 31 lbs | 12″ | 15.4 (7.6) |
| VLP-150 | 110303 |
15″ | 48 lbs | 16-1/2″ | 27.4 (12.5) |
| VLP-150-10 | 110307 |
15″ | 48 lbs | 16-1/2″ | 28.7 (13.3) |
| VLP-300 | 110304 |
18-7/8″ | 70 lbs | 16-1/2″ | 45.7 (20.8) |
| VLP-300-10 | 1103048 |
18-7/8″ | 70 lbs | 16-1/2″ | 46.3 (21.3) |
| Model no. | Product no. |
Rated Lifting Capacity | A | B | C | D | H |
| VLP-75 | 110302 |
3/4 Ton | 5-7/8″ | 3-1/2″ | 37.5mm | 12″ | 12-3/4″ |
| VLP-75-10 | 110306 |
3/4 Ton | 5-7/8″ | 3-1/2″ | 37.5mm | 12″ | 12-3/4″ |
| VLP-150 | 110303 |
1-1/2 Ton | 6-3/4″ | 3-7/8″ | 47mm | 16-1/2″ | 15″ |
| VLP-150-10 | 110307 | 1-1/2 Ton | 6-3/4″ | 3-7/8″ | 47mm | 16-1/2″ | 15″ |
| VLP-300 | 110304 |
3 Tons | 7-7/8″ | 4-1/2″ | 62.5mm | 16-1/2″ | 18-7/8″ |
| VLP-300-10 | 110308 |
3 Tons | 7-7/8″ | 4-1/2″ | 62.5mm | 16-1/2″ | 18-7/8″ |
