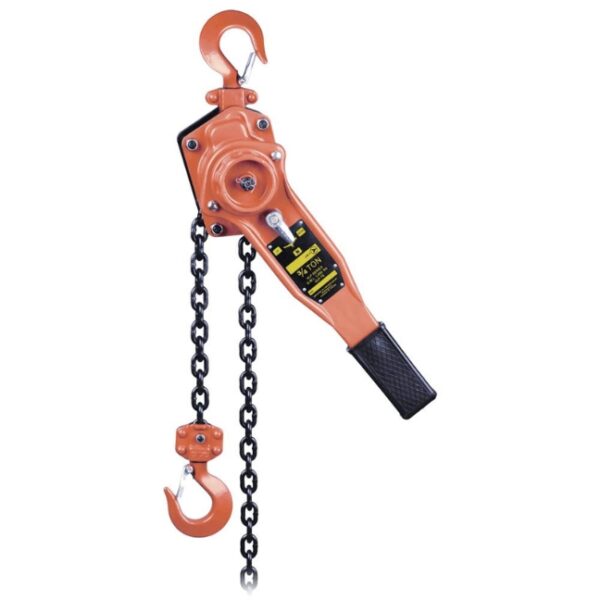

Jet 110302 3/4 Ton 5ft Lift VLP Series Lever Chain Puller

$342.41

In Stock

UOM: EA SKU: 110302 Categories: , UPC: 059629869413

Description

Jet 110302 3/4 Ton 5ft Lift VLP Series Lever Chain Puller

The Jet 110302 3/4 Ton 5ft Lift VLP Series Lever Chain Puller:

  • Product no. 110302
  • Model no. VLP-75
  • Impact-resistant, cold-formed, stamped steel housing
  • Equipped grade 80 load chain
  • Hardened steel roller bearings support load for easier operation
  • Weston-style brake with dual pawl for safe, reliable operation
  • Premium grade, non-asbestos brake discs ensure long life
  • Top and bottom safety hooks are designed to bend slowly to provide warning of overloads
  • Deformation indicators on the hooks allow accurate measurement and easy maintenance
  • Tested to 150% of rated capacity – certificate included
  • Complies with ANSI B30.16 standards
  • ISO 9001-2000 certified factory
VLP Series Lever Chain Puller Comparison & Selection Charts
Model no. Product no.
Rated Lifting Capacity  Standard Lift Number of Falls Load Chain Diameter
VLP-75 110302
3/4 ton 5 ft. 1 6.0 mm
VLP-75-10 110306 3/4 ton 10 ft. 1 6.0 mm
VLP-150 110303 1-1/2 ton 5 ft. 1 8.0 mm
VLP-150-10 110307 1-1/2 ton 10 ft. 1 8.0 mm
VLP-300 110304 3 ton 5 ft. 1 10.0 mm
VLP-300-10 110308 3 ton 10 ft. 1 10.0 mm



Model no. Product no. Minimum Distance Between Hooks Force Required to Lift Capacity Lever Length Weight  lbs(kg)
VLP-75 110302
12″ 31 lbs 12″ 14 (6.4)
VLP-75-10 110306
12″ 31 lbs 12″ 15.4 (7.6)
VLP-150 110303
15″ 48 lbs 16-1/2″ 27.4 (12.5)
VLP-150-10 110307
15″ 48 lbs 16-1/2″ 28.7 (13.3)
VLP-300 110304
18-7/8″ 70 lbs 16-1/2″ 45.7 (20.8)
VLP-300-10 1103048
18-7/8″ 70 lbs 16-1/2″ 46.3 (21.3)



Model no. Product no.
Rated Lifting Capacity A B C D H
VLP-75 110302
3/4 Ton 5-7/8″ 3-1/2″ 37.5mm 12″ 12-3/4″
VLP-75-10 110306
3/4 Ton 5-7/8″ 3-1/2″ 37.5mm 12″ 12-3/4″
VLP-150 110303
1-1/2 Ton 6-3/4″ 3-7/8″ 47mm 16-1/2″ 15″
VLP-150-10 110307 1-1/2 Ton 6-3/4″ 3-7/8″ 47mm 16-1/2″ 15″
VLP-300 110304
3 Tons 7-7/8″ 4-1/2″ 62.5mm 16-1/2″ 18-7/8″
VLP-300-10 110308
3 Tons 7-7/8″ 4-1/2″ 62.5mm 16-1/2″ 18-7/8″



Additional information

Weight 14 lbs
