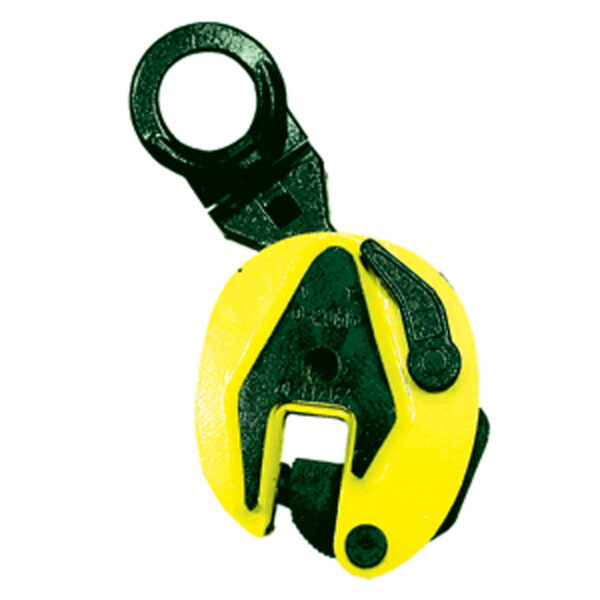

Jet 109323 SPCU-100 1-Ton Universal Plate Clamp

Description

Jet 109323 SPCU-100 1-Ton Universal Plate Clamp

Jet 109323 SPCU-100 1-Ton Universal Plate Clamp:

Features:

• Product no. 109323
• Model no. SPCU-100
• Universal style plate clamps are suitable for:
  • • • Lifting horizontally stored plates into vertical position
• Can also be used to flip plates over:
  • • • If adequate ground clearance is allowed for the safety lock to operate
• Engineered for safe lifting of various sizes and weights of steel plates
• Ideal for all steel fabrication plants
• Safety lock included
• Specially hardened jaw ensures safe gripping power and long life
• Suitable for plates of 400 Vickers (HRC-41) Max
• Complies with ANSI B30.20 specifications (certificate included)
• Tested to 200% of rated capacity

Specifications:

• Jaw Opening: 0 to 1-3/8”
• Min. Plate Thickness: 13/64″ (5.0 mm)
• Product Weight: 11 lb (5 kg)
• Rated Lifting Capacity: 1-Ton
• Shipping Weight: 11 lb (5 kg)
• Suspension Eye Opening: 2-1/4″
