Jet 107215 FA-35 3-Ton FA Series Chain Hoist – 15ft. Lift 230/460V
Jet 107215 FA-35 3-Ton FA Series Chain Hoist – 15ft. Lift 230/460V:
Features:
- Product no. 107215
- Article no. FA-35
- 3-Ton (6,600 lb) Capacity
- Three phase hoist:
-
-
- Features reverse phase protection
-
-
- Chain is heat treated
- Case hardened low wear chain surpassing ISO Class T
- Complete with chain collector bucket
- Reliable electro-magnetic DC brake engages automatically when power is cut off
- Two button pendant control automatically returns to OFF mode when either button is released
- 24 volt pendant control for operator safety in damp or humid conditions
- Strain relief cable protects electrical connections
- Top and bottom safety hooks designed to bend slowly to warn of overloads
- Upper and lower limit switches protect hoist from damage if load or chain stop contacts body
- Gear train and electrical components completely sealed for use outdoors (cover recommended)
- Modular construction of motor, gear train, and brake assembly allows for quick and easy maintenance
- Reverse phase protection
- Meets ASME B30.16, CSA, and OSHA standards
Specifications:
- Amperes: 5.8 / 3.2
- Duty Rating: 30 min
- Head Room: 31.89″
- Hoisting Speed: 8 FPM
- Motor Power: 2.1 HP
- Number of Falls: 3
- Power Cable Length: 16ft
- Power Source: 3 ph
- Product Weight: 196 lb (88.2 kg)
- Rated Lifting Capacity: 6,600 lb
- Rated Lifting Capacity: 3 T
- Shipping Weight: 205 lb (92.3 kg)
- Standard Chain Bucket: #4
- Standard Lift: 15ft
- Voltage: 230/460 V

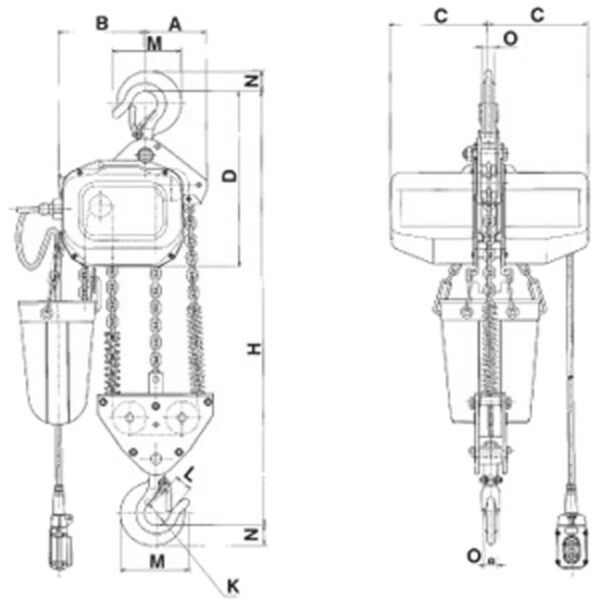

- Dimensions (see accompanying diagram):
-
-
- A: 5.83″
- B: 8.19″
- C: 9.41″
- D: 16.81″
- H: 31.89″
- K: 2.36″
- L: 2.36″
- M: 6.50″
- N: 1.93″
- O: 1.38″
-
-
