Jet 107214 FA-25 2-Ton FA Series Chain Hoist – 15ft. Lift 230/460V
Jet 107214 FA-25 2-Ton FA Series Chain Hoist – 15ft. Lift 230/460V:
Features:
- Product no. 107214
- Article no. FA-25
- 2-Ton (4,400 lb) Capacity
- • Three phase hoist:
-
-
- Features reverse phase protection
-
-
- Chain is heat treated
- Case hardened low wear chain surpassing ISO Class T
- Complete with chain collector bucket
- Reliable electro-magnetic DC brake engages automatically when power is cut off
- Two button pendant control automatically returns to OFF mode when either button is released
- 24 volt pendant control for operator safety in damp or humid conditions
- Strain relief cable protects electrical connections
- Top and bottom safety hooks designed to bend slowly to warn of overloads
- Upper and lower limit switches protect hoist from damage if load or chain stop contacts body
- Gear train and electrical components completely sealed for use outdoors (cover recommended)
- Modular construction of motor, gear train, and brake assembly allows for quick and easy maintenance
- Reverse phase protection
- Meets ASME B30.16, CSA, and OSHA standards
Specifications:
- Amperes: 5.8 / 3.2
- Duty Rating: 30 min
- Head Room: 27.95″
- Hoisting Speed: 12.1 FPM
- Motor Power: 2.1 HP
- Number of Falls: 2
- Power Cable Length: 16ft
- Power Source: 3 ph
- Product Weight: 153 lb (68.85 kg)
- Rated Lifting Capacity: 4,400 lb
- Rated Lifting Capacity: 2 T
- Shipping Weight: 157 lb (70.7 kg)
- Standard Chain Bucket: #3
- Standard Lift: 15ft
- Voltage: 230/460 V

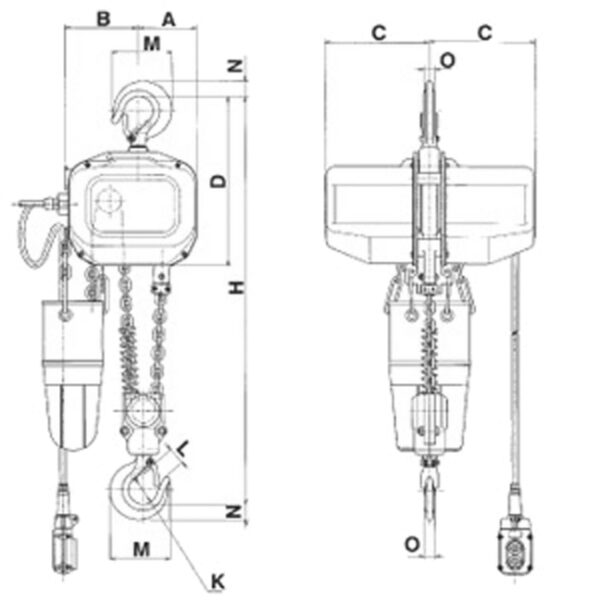

- Dimensions (see accompanying diagram):
-
-
- A: 5.24″
- B: 6.50″
- C: 9.41″
- D: 14.65″
- H: 27.95″
- K: 2.09″
- L: 1.97″
- M: 5.67″
- N: 1.73″
- O: 1.18″
-
-
