Description

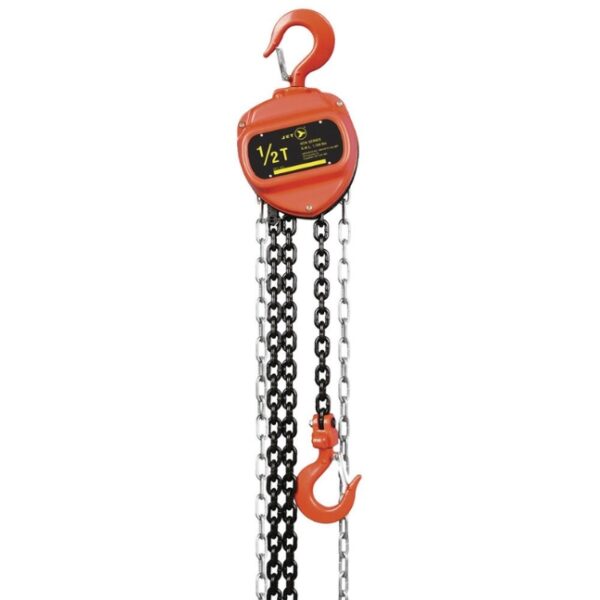

Jet 101002 1/2-Ton 10ft Lift VCH Series Standard Duty Chain Hoist
The Jet 101002 1/2-Ton 10ft Lift VCH Series Standard Duty Chain Hoist features:
- Product no. 101002
- Model no. VCH-0510
- Efficient Triple Spur gearing
- Load sheave is supported by hardened steel roller bearings for easy operation
- Dual pawl Weston style brake provides reliable, safe operation
- Premium grade, non-asbestos brake discs ensure long life
- Equipped with a Grade 80 load chain
- Top and bottom safety hooks are designed to bend slowly to provide warning of overloads
- Load tested to 150% of rated capacity – certificate provided
- Complies with ASME B30.16 standards
- Factory certified ISO 9001-2000
Specifications:
- Product Weight: 19.756 lbs (8.98 kg)
- Rated Lifting Capacity: 1/2 ton (1,100 lbs)
- Standard Lift: 10 ft.
- Head Room: 11-1/32″
- Number of Falls: 1
- Load Chain Diameter: 6.0 mm
- Force Required to Lift Capacity: 49 lbs
- Length of Hand Chain Pulled to Lift Load 1 ft.: 27 ft.
Product Selection Charts
| Rated Lifting Capacity | A | B | C | G | H |
| 1/2 Ton | 4-15/16″ | 4-13/16″ | 35mm | 27mm | 11-1/32″ |
| 1 Ton | 5-3/4″ | 5-1/2″ | 45mm | 33mm | 12-1/16″ |
| 2 Tons | 7-1/4″ | 6-1/4″ | 52mm | 33.5mm | 17-1/2″ |
| 3 Tons | 7-13/64″ | 6-7/32″ | 2-29/64″ | 1-23/32″ | 20-15/32″ |
| Product no. | Model no. | Rated Lifting Capacity (Tons) | Rated Lifting Capacity (lbs) | Standard Lift |
| 101002 | VCH-0510 | 1/2 ton | 1,100 lbs | 10 ft. |
| 101006 | VCH-0520 | 1/2 ton | 1,100 lbs | 20 ft. |
| 101012 | VCH-1010 | 1 ton | 2,220 lbs | 10 ft. |
| 101016 | VCH-1020 | 1 ton | 2,220 lbs | 20 ft. |
| 101032 | VCH-2010 | 2 ton | 4,400 lbs | 10 ft. |
| 101036 | VCH-2020 | 2 ton | 4,400 lbs | 20 ft. |
| 101042 | VCH-3010 | 3 ton | 6,600 lbs | 10 ft. |
| 101046 | VCH-3020 | 3 ton | 6,600 lbs | 20 ft. |
