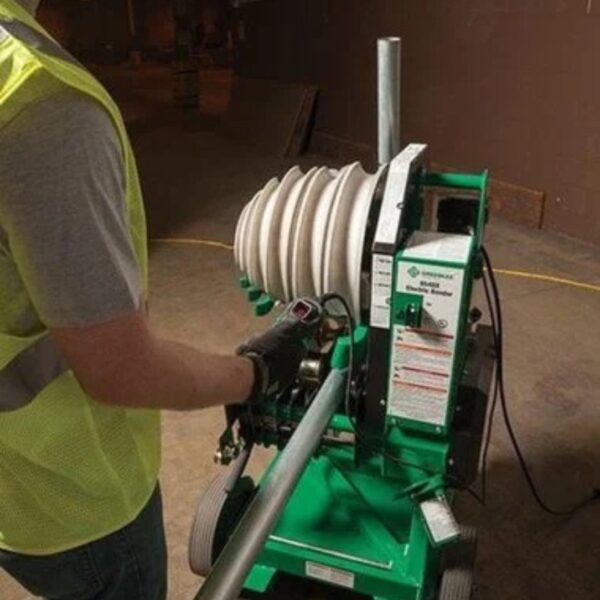

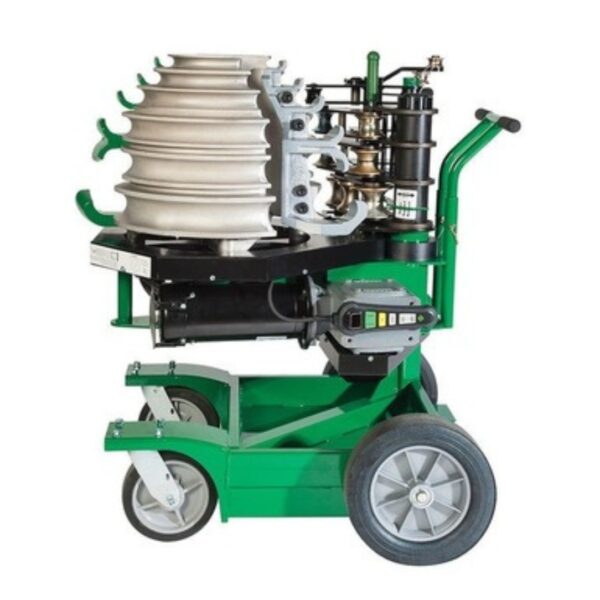

Greenlee 854DX Single Shoe Electric Conduit Bender

Greenlee 854DX Single Shoe Electric Conduit Bender

The Greenlee 854DX Single Shoe Electric Conduit Bender Includes:

• 1/2″ – 2″ Rigid/EMT/IMC shoe
• Roller support
• Digital pendant

Features:

• All-in-One Versatility – One shoe bends 1/2″ to 2″ EMT, IMC, and Rigid conduit without tool changes
• Precision Angle Control – Absolute encoder stops bending at exact pre-set angles every time
• Reliable Performance – Solid-state electronics rated for over 1,000,000 bends
• Dual Bending Modes – Easily switch between vertical and horizontal configurations
• Digital Pendant Interface – Set bend angles and monitor progress on an intuitive display
• Power Loss Protection – Solid-state system prevents arcing and protects against temporary power drops
• PVC-Coated Compatible – Optional shoe accessory enables PVC-coated Rigid conduit bending

Specifications:

• Conduit Capacity: 1/2″ to 2″ Rigid, EMT, and IMC
• Conduit Types: Rigid, EMT, IMC (PVC-coated Rigid with optional accessory)
• Voltage: 120 VAC
• Amperage: 20A (GFCI-Protected Receptacle)
• Dimensions: 46.1″ H × 29.4″ W × 33.0″ D (1171 mm H × 747 mm W × 840 mm D)
• Weight: 513 lbs (233 kg)
• Angle Indicator: Digital display on pendant
• Certifications: C/US UL Listed
• Included Components: Rigid/EMT/IMC shoe, roller support, and digital pendant
