Description

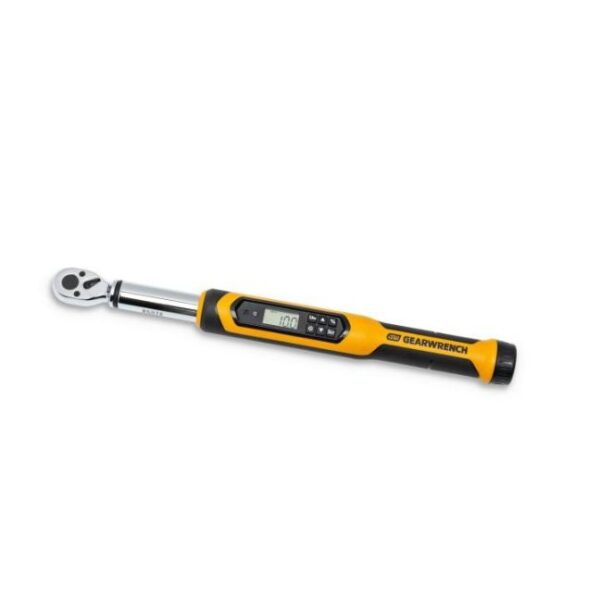

GearWrench 85076 3/8″ Drive Electronic Torque Wrench 10 to 100 ft/lbs
The GearWrench 85076 3/8″ Drive Electronic Torque Wrench 10 to 100 ft/lbs includes:
- Plastic Storage Case
Features:
- Catalog no. 85076
- Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability
- 5 torque measurement units provide a readout in:
-
-
- Nm, ft-lb, in-lb, Kgf-m, and Kgf-cm
-
-
- “Target Torque Alert”:
-
-
- Gives a warning as you approach the target torque
- Vibrating handle, buzzer, and solid LED light indicate when target is reached
-
-
- 72-tooth ratchet mechanism with a 5° swing arc:
-
-
- Allows you to turn fasteners in tight spaces
-
-
- Handle and housing:
-
-
- Oil and solvent resistant
- Protecting the tool from harmful agents
- Keep your hands in place
-
-
- Requires 3 AA batteries (not included)
- Meets or exceeds ASME B107.28M standards and specifications
- 1 year limited warranty; calibration accuracy warrantied for 90 days
- Finish: Full Polish Chrome
Specifications:
- Drive tang size: 3/8″
- Drive type: Square
- Tooth count: 72
- Minimum Torque (Primary Scale): 10 ft-lbs
- Maximum Torque (Primary Scale): 100 ft-lbs
- Primary Scale increments: 0.1 ft-lbs
- Minimum Torque (Alt Scale): 13.5 ft-lbs
- Maximum Torque (Alt Scale): 135 ft-lbs
- Alt Scale increments: 0.1 ft-lbs
- Torque accuracy: +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability
- Overall length: 15.75″
- Head size:
-
-
- Length: 2.4″
- Width: 1.75″
- Thickness: 0.75″ less tang
-
-
Also available: GearWrench 85077 1/2″ Drive Electronic Torque Wrench 25 to 250 ft-lbs
