Description
GearWrench 82305 Punch and Chisel Set 12-Piece
The GearWrench 82305 Punch and Chisel Set 12-Piece includes:

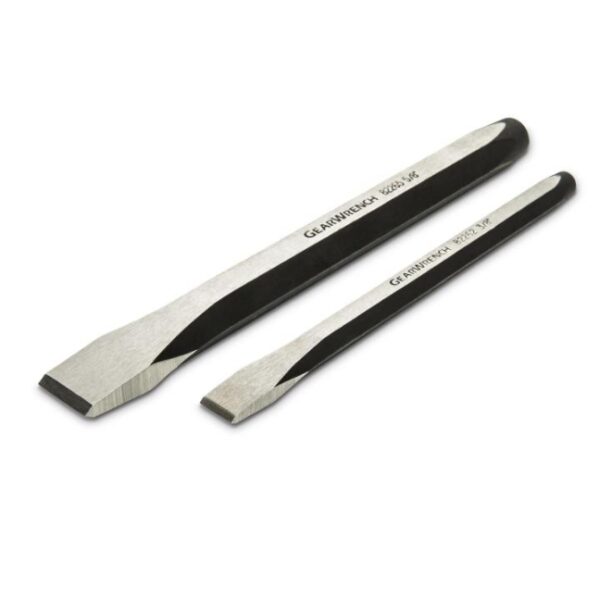

- Cold Chisels:
-
-
- 82261: 1/4″ x 4-3/4″
- 82262: 3/8″ x 5″
- 82264: 1/2″ x 6″
- 82265: 5/8″ x 6-1/2″
-
-
- Center Punch:
-
-
- 82270: 5/32″ x 4-3/4″
-
-

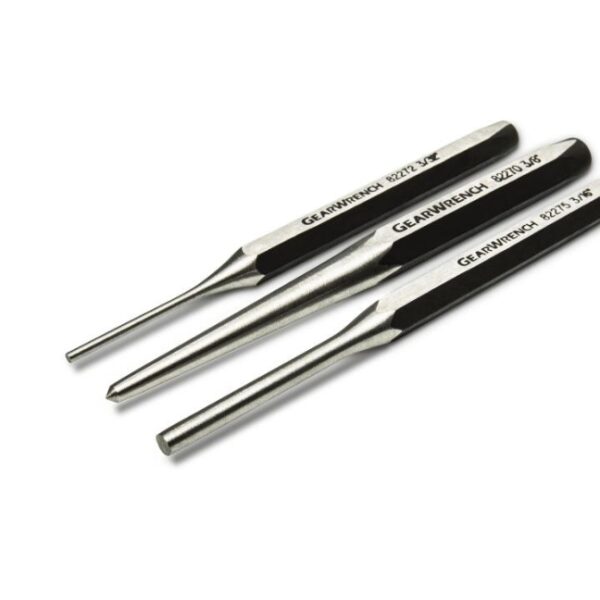

- Pin Punches:
-
-
- 82272: 3/32″ x 4-3/4″
- 82273: 1/8″ x 5″
- 82274: 5/32″ x 5-1/4″
- 82275: 3/16″ x 5-1/2″
-
-
- Long Taper Punch:
-
-
- 82278: 1/8″ x 8″
-
-
- Starter Punches:
-
-
- 82285: 1/8″ x 4-1/2″
- 82283: 3/16″ x 5″
-
-
- Roll-up Storage Pouch
Features:
- Catalog no. 82305
- Precision hardened chisels for cutting metal rivets, bolts, and nuts
- Pin punches for driving out pins and rivets during final removal
- Center punch for marking center lines or pilot drill locations
- Long taper punch lets you install or remove pins and shafts, and aligns holes with ease
- Starter punches for both starting and installing pins or rivets
- Meets or exceeds ASME B107.47
- Includes tool roll for storage and organization
Specifications:
- Sizes:
-
-
- Center Punch: 5/32″ x 5″
- Long Taper Punch: 1/8″ x 8″
- Pin Punches: 3/32″ x 4-3/4″, 1/8″ x 5″, 5/32″ x 5-1/4″, 3/16″ x 5-1/2″
- Starter Punches: 1/8″ x 4-1/2, 3/16″ x 5″
- Cold Chisels: 1/4″ x 4-3/4″, 3/8″ x 5″, 1/2″ x 6″, 5/8″ x 6-1/2″
-
-
- ANSI Specification: B107.47M-1998/B107.48M-1998
- ASME Specification: B107.47
- Set Weight: 1.97 lbs
- Warranty: Limited Lifetime
- Finish: Phosphate Coated
- Set Size Range Min: 3/32″
- Set Size Range Max: 5/8″
- Included Storage: Tool Roll
- Set Piece Count: 12
- Material: Alloy Steel
