Description

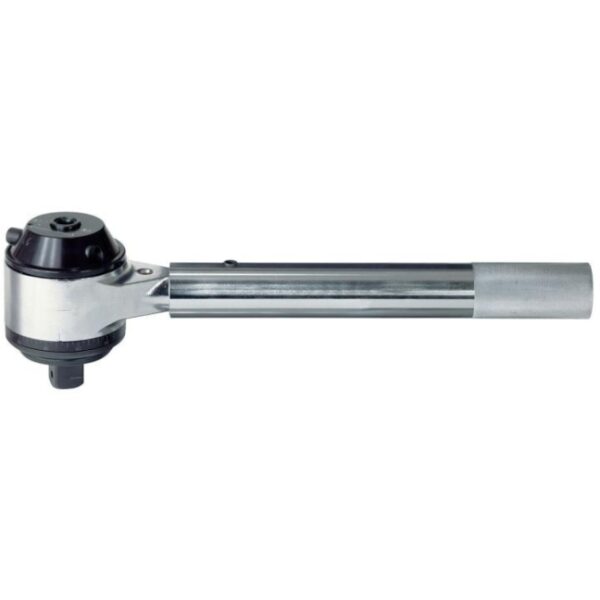

GearWrench 64-834G 2,200 Foot Pound Torque Multiplier
GearWrench 64-834G 2,200 Foot Pound Torque Multiplier:
Features:
- Catalog no. 64-834G
- Low input torque required:
-
-
- Can easily be applied by one person
-
-
- Internal planetary gear system provides strength and durability
- Simple Operation:
-
-
- Place an impact socket on the output square to attach to the fastener
- Then restrain the reaction bar against the equipment being serviced
-
-
- Input and output rotate in a matching direction
- Reaction arm moves in the opposite direction from the input/output force
- Torque accuracy of +/- 5% CW between 20% and 100% of wrench capability
- Square drive shears at 3% to 10% of overload torque:
-
-
- Helps protect against internal damage
- Permits easy replacement of the square drive
-
-
- Built-in anti-backlash:
-
-
- Maintains the multipliers input torque
- Allows the use of a ratcheting head torque wrench for more efficiency
-
-
- Built-in angle of turn protractor:
-
-
- Displays the output angle
- Provides effective use on fasteners requiring a specific angle rotation after applied torque
-
-
- Made in the USA
- 1 year limited warranty
- Calibration accuracy warrantied for 90 days
Specifications:
- Torque Accuracy (20-100% of Full Range): +/-5% Clockwise
- Head Thickness: 5.7″
- Repair Kit: 64-851G
- Knurled: No
- Flexible: No
- Overall Length: 20.0″
- Head Width: 4.031″
- Weight: 20.6 lbs
- Warranty: 90 Days Calibration/1 Year on Parts
- Head Length: 5.812″
- Input Drive: 1/2″
- Finish: Electroless Nickle
- Overall Height: 5.7″
- Output Drive: 1″ Square Drive
- Included Storage: Blow Mold Case
- Overall Width: 4.1″
- Drive Type: Square
- Material: Steel
Available GearWrench Torque Multipliers:
- 64-830G 750 Foot Pound Torque Multiplier
- 64-832G 1,200 Foot Pound Torque Multiplier
- 64-833G 2,000 Foot Pound Torque Multiplier
- 64-834G 2,200 Foot Pound Torque Multiplier
