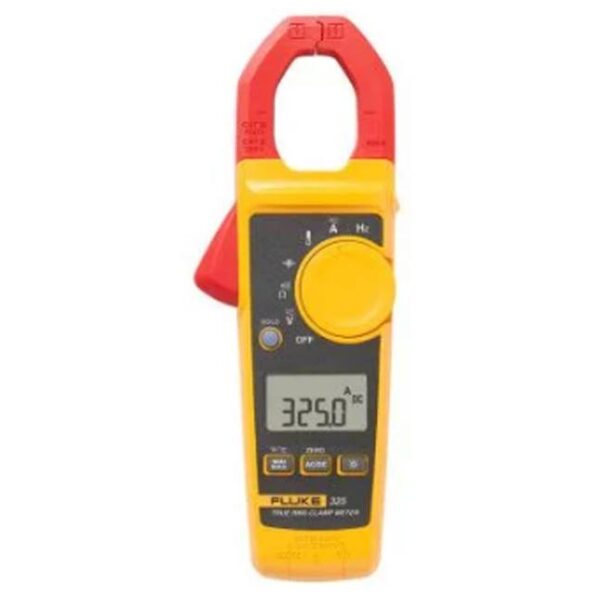

Fluke 5065866 325 True-RMS Clamp Meter
The Fluke 5065866 325 True-RMS Clamp Meter:
- Big AC/DC features in a small form factor
Features:
- Model no. 325
- Item no. 5065866
- Rugged, reliable True-RMS clamp meter with dc current and frequency measurements
- Great for commercial and residential electricians
- Use to verify the presence of load current, AC voltage, and continuity of circuits, switches, fuses and contacts
- Frequency measurements allow checking of portable generators
- DC current testing battery backups and solar storage equipment
- Measures AC and DC current to 400 A
- Measures AC voltage and DC voltage to 600 V
- Provides True RMS AC voltage and current for accurate measurements on non-linear signals
- Measures resistance to 40 kΩ with continuity detection
- Measures frequency to 500 Hz
- Provides Min/Max functionality
- Measures temperature from -10.0°C to 400.0°C (14.0°F to 752.0°F)
- Presents measurements on a large, easy-to-read backlight display
- Measures capacitance to 1000 µF
- Hold function captures a reading on the display
- CAT III 600 V, CAT IV 300 V safety rating
Specifications |
||
| AC current | Range | 40.00 A / 400.0 A |
| Accuracy | 2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz) |
|
| DC current | Range | 40.00 A / 400.0 A |
| Accuracy | 2% ± 5 digits | |
| AC voltage | Range | 600.0 V |
| Accuracy | 1.5% ± 5 digits | |
| DC voltage | Range | 600.0 V |
| Accuracy | 1.0% ± 5 digits | |
| Resistance | Range | 400.0 Ω / 4000 Ω / 40.00 kΩ |
| Accuracy | 1.0% ± 5 digits | |
| Continuity | ≤ 30 Ω | |
| Capacitance |
0 to 100.0 μF / 100μF to 1000 μF
|
|
| Frequency | 5.0 Hz to 500.0 Hz | |
| AC response | True-RMS | |
| Backlight | Yes | |
| Data hold | Yes | |
| Contact temperature | -10.0°C to 400.0°C (14.0°F to 752.0°F) | |
| Min/Max | Yes | |
| Size | H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) | |
| Weight | 283 g | |
| Category rating | CAT III 600 V CAT IV 300 V |
|
| Warranty | Two-year | |
