Description
Fein 72732362090 JMC MAGFORCE 90 Compact Magnetic Base Drill up to 1- 3/8″ (36mm)

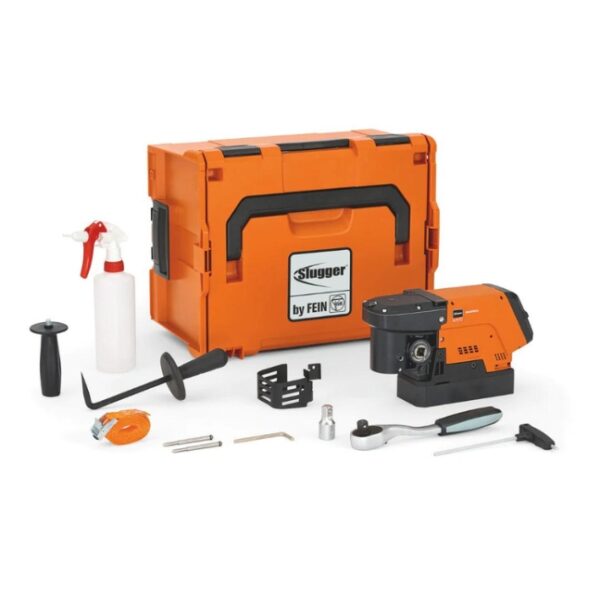

The Fein 72732362090 JMC MAGFORCE 90 Compact Magnetic Base Drill up to 1- 3/8″ (36mm) includes:
- 1/2″ Ratchet
- 1/2″ Socket wrench extension
- Coolant pump
- Safety strap
- Chip hook
- Two Centering pins:
-
-
- 3-1/8″ x 3/16” [80mm x 4.75 mm]
- 3-1/4″ x 1/4″ [82mm x 6.35 mm]
-
-
- Chip guard
- Additional handle
- Allen key 5 mm
- Hexagonal socket key with T-grip, 5 mm
- Plastic carrying case (L-BOXX 238)
Features:
- Product no. 72732362090
- High Performance brushless motor:
-
-
- Powerful, maintenance-free 10 A [1,200 W]
-
-
- Take on any drilling application with:
-
-
- Variable speed
- Forward/reverse operation
-
-
- Ratcheting handle allows you to work in even the tightest spaces
- German-engineered to be extremely durable, wear-resistant for drilling in tough applications
- Work safely:
-
-
- Tilt sensor safety shutoff
- Easy to read magnetic holding force display
- Personal safety switches
-
-
- User controls are always in view and intuitive to use because each control feels different
- High gear level for clear view of the hole location
- Large installation space below the drill spindle with a stroke of 1-13/16 [46] in[mm]
- Drive shaft combined 1/2″ square and 8mm hexagonal socket
- Integrated handle
- “Memory function” speed storage
- Storage for 5 mm Allen key directly on the tool
- Inner cooling lubrication with included hand pump
- Perfectly equipped for any job. Easily transported with our L-BOXX system
Specifications:
- Power consumption: 1,200 W
- Power output: 680 W
- Full load speed range: 130 to 610 RPM
- No load speed range: 130 to 660 RPM
- Carbide cutter max. diameter: 1-3/8″ [35mm]
- HSS cutter max. diameter:1-3/8″ [35mm]
- Cutter max. drilling depth: 1-3/8″ [35mm]
- Twist drill max. diameter: 9/16″ [14mm]
- Tapping: 3/8″ (M10)
- Max. countersinking diameter: 1-1/4″ [32mm]
- Cutter holder: 3/4″ Weldon
- Stroke: 1-13/16″ [46mm]
- Minimum clearance: 40mm
- Construction height: 6-5/8″ [169mm]
- Length: 11-7/16″ [290mm]
- Magnetic holding force: 2,248 lbs [10,000 N]
- Magnetic base dimensions: 6-7/8″x 3-1/8″ [175mm x 80mm]
- Cable with plug: 9.8ft [3m]
- Weight: 18.74 lbs [8.50 kg]
Vibration and Sound Emission Values:
- Sound pressure level LpA: 95.3 dB
-
-
- Measurement uncertainty of the measured value KpA: 5 dB
-
-
- Sound power level LWA: 103.3 dB
-
-
- Measurement uncertainty of the measured value KWA: 5 dB
-
-
- Peak sound value LpCpeak: 106.3 dB
-
-
- Measurement uncertainty of the measured value KpCpeak: 5 dB
-
-
- Vibration value 1 αhv 3-way: ah.D = <2.5 m/s²
-
-
- Measurement uncertainty of the measured value Kα: 1.5 m
-
-
