Description

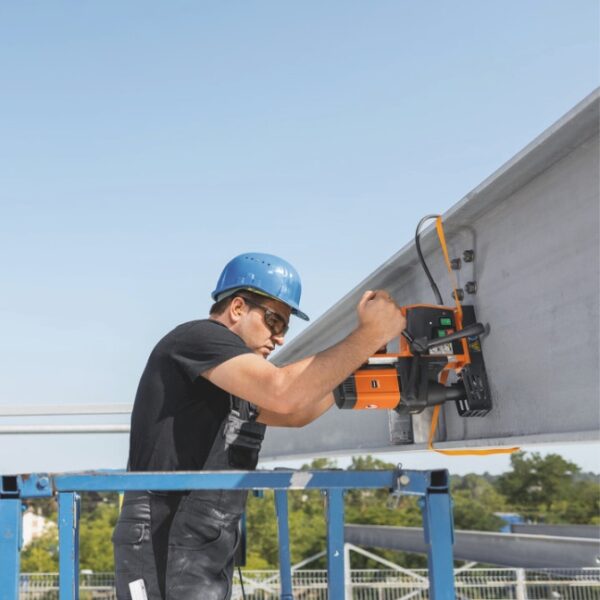

Fein 72709461090 JME SHORTSLUGGER II ENDURANCE Magnetic Base Drill up to 1-1/4″ (32mm)
The Fein 72709461090 JME SHORTSLUGGER II ENDURANCE Magnetic Base Drill up to 1-1/4″ (32mm) includes:
- Coolant tank
- Safety strap
- Chip hook
- Three centering pins:
-
-
- 1/4″ x 3-1/8″ [6.35mm x 80mm]
- 1/4″ x 4″ [6.35mm x 100mm]
- 3/16″ x 4″ [4.75mm x 100mm]
-
-
- Chip guard
- Allen key 5 mm
- Case
Features:
- Product no. 72709461090
- Small, extremely lightweight 1-speed Endurance magnetic core drill:
-
-
- With basic functionality for core drilling on the construction site
-
-
- For tough use due to:
-
-
- High-quality workmanship
- Internal motor cable routing
-
-
- Uncompromising service life:
-
-
- Extra-durable gearbox design
- Up to 400 hours of operation time
-
-
- Lightweight with FEIN high-performance motor and high torque for all core drilling work
- Easy to read convenient magnetic holding force display
- Motion sensor
- Internal cooling
- High magnetic holding force
- Hand feed wheel can be mounted on either side
- Good accessibility in cramped operating situations
- Personal safety switches
Specifications:
- Power consumption: 1,200 W
- Power output: 770 W
- Full load speed: 450 RPM
- No load speed: 700 RPM
- Carbide cutter max. diameter: 1-1/4″ [32mm]
- HSS cutter max. diameter: 1-1/4″ [32mm]
- Cutter max. drilling depth: 2″ [50mm]
- Cutter holder: 3/4″ Weldon
- Stroke: 3-9/16″ [90mm]
- Magnetic holding force: 2,248 lbs [10,000 N]
- Magnetic base dimensions: 6-7/8″ x 3-1/8″ [175mm x 80mm]
- Cable with plug: 10 ft [3m]
- Weight: 23.81 lbs [10.80 kg]
