Econo Load Rated Anchor Shackles

$2.26 – $61.11

Hot Dipped Galvanized
3/16"

$2.26
1/4"

$2.57
5/16"

$3.11
3/8"

$3.97
7/16"
1/2"

$6.51
5/8"

$10.20
3/4"

$15.64
7/8"

$24.71
1"

$33.04
1-1/8"
1-1/4"

$61.11
1-3/8"
1-1/2"
1-3/4"
2"
2-1/2"

Econo Load Rated Anchor Shackles

Econo Load Rated Anchor Shackles

$2.26 – $61.11

Add to wishlist
UOM: N/A SKU: N/A Categories: ,
This image is for representative purposes only - the actual product may differ. Please refer to the Product Title and the Product Description for the most accurate information.

Description

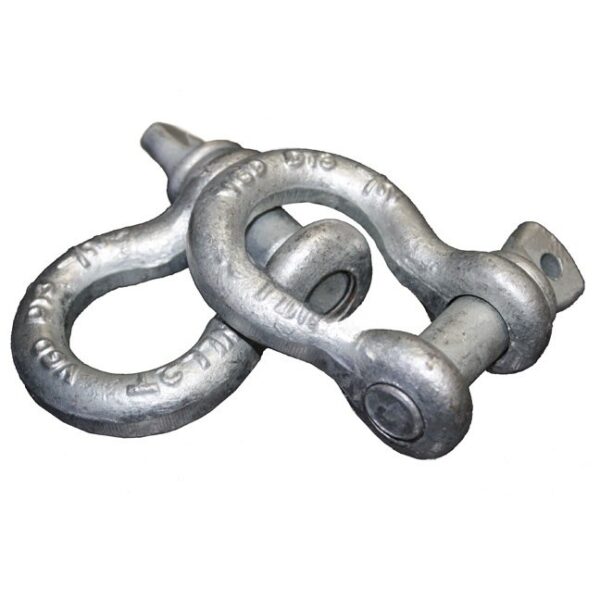

Econo Load Rated Anchor Shackles

  • Meet the performance requirements of U.S. Fed. Spec. RR-C-271D, Type 4A, Grade A, Class 2
  • Bows are heat treated carbon steel and tempered – with Alloy pins
  • Hot dipped galvanized for excellent corrosion resistance
  • Design factor 6:1
  • Shackle bodies are embossed with Size, WLL (Working Load Limit) and trace code
Size
(inches)		 Pin
Diameter
(inches)		 WLL
(tons)
3/16 1/4 1/3
1/4 5/16 1/2
5/16 3/8 3/4
3/8 7/16 1
7/16 1/2 1-1/2
1/2 5/8 2
5/8 3/4 3-1/4
3/4 7/8 4-3/4
7/8 1 6-1/2
1 1-1/8 8-1/2
1-1/8 1-1/4 9-1/2
1-1/4 1-3/8 12



Additional information

Weight N/A
Size

3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-3/4", 2", 2-1/2"
