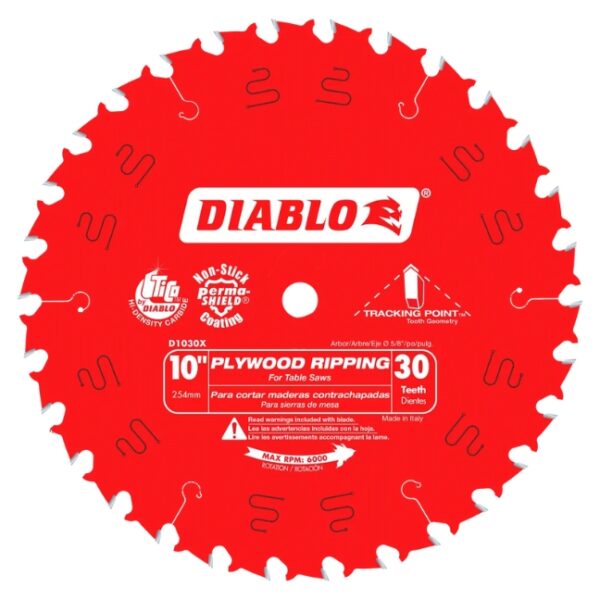

Diablo D1030X 10″ x 30T Plywood Ripping Blade



UOM: EA SKU: D1030X Categories: , ,


Diablo D1030X 10″ x 30T Plywood Ripping Blade

Diablo D1030X 10″ x 30T Plywood Ripping Blade:

  • Product no. D1030X
  • Delivers quality rip cuts (3/4″ to 2-3/4″)
  • Designed for Corded and Cordless portable and stationary table saws
  • TiCo™ Hi-Density carbide for extreme durability, maximum cutting life and ultimate cutting performance
  • Tracking Point tooth design:
        • Acts as a “rudder” to provide straight cuts and control carbide wear on the tooth
        • Delivers up to five times longer cutting life versus other blades
        • Doubles the carbide surface area for greater impact resistance and double the durability in plywood ripping applications
        • Delivers extreme cutting efficiency in corded and cordless table and portable table saws
  • Advanced anti-vibration design:
        • Laser cut stabilizer vents to traps noise and vibration
        • Provides the ideal combination of stability and rigidity for precise, clean cuts
  • Laser-cut Super Thin Kerf Design:
        • Allows the blade to glide through wood materials
        • Offers less resistance and heat build-up for superior ease of cut, accuracy and long cutting life
  • Perma-SHIELD non-stick aluminum alloy coating protects the blade against heat, gumming and corrosion
  • Tri-Metal Shock Resistant Brazing:
        • A three metal brazing system
        • Provides a high performance shock absorber behind every tooth
        • Withstands extreme impact for maximum durability
  • Computer-controlled Precision Tensioning keeps the blade flat for superior quality finish
  • Laser Cut Arbor reduces vibration and premature wear for accurate blade rotation on corded and cordless saws
  • Delivers smooth, fast, accurate cutting performance in:
        • Hardwoods
        • Softwoods
        • Pressure treated lumber
        • Plywood
        • Melamine
        • OSB


  • Diameter: 10″
  • Arbor: 5/8″
  • Hook angle: 10º
  • Kerf: 0.094″
  • Plate: 0.071″
  • Teeth: 30 ATB
  • Maximum rotational speed: 6,000 RPM
