Description

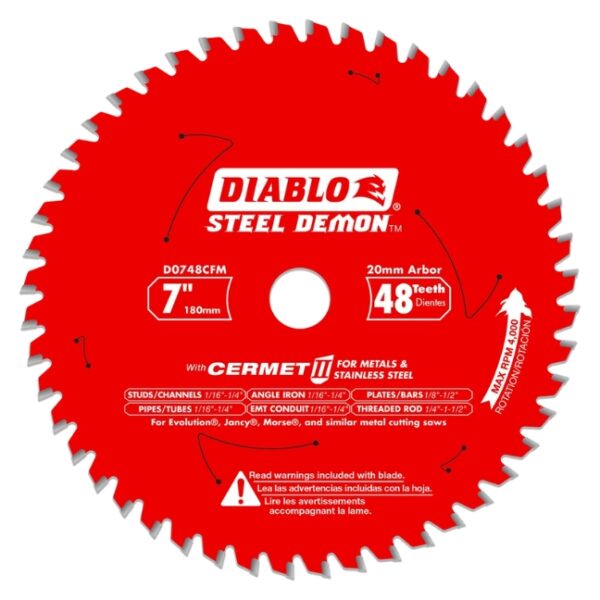

Diablo D0748CFM 7″ x 48T STEEL DEMON CERMET II Saw Blade for Metals and Stainless Steel Metal Cutting
Diablo D0748CFM 7″ x 48T STEEL DEMON CERMET II Saw Blade for Metals and Stainless Steel Metal Cutting:
Features:
- Product no. D0748CFM
- Cermet II (Ceramic and Metallic) teeth:
-
-
- Deliver a more efficient and productive metal cutting solution
- High heat tolerance and increased hardness
- Superior wear
- Fewer blade changes
- Up to 25X longer life versus standard grinding discs
-
-
- Up to 50X cooler cuts with a circular saw blade when compared to a grinding disc (Grinding discs increase the temperature of steel by up to 500º – enough to permanently discolor the steel)
- Up to 10X faster cuts with a circular saw blade:
-
-
- Maximize productivity and efficiency
- Results in up to 60 seconds faster cuts in both metals and stainless steels versus standard grinding discs
-
-
- Triple Chip Cutting action reduces sparks and the possibility of needing “hot” permits
- Optimized blade design:
-
-
- Reduces wandering and deflection of metal
- Creates precise cuts that require virtually no re-work
-
-
- Advanced Laser Cut Stabilizer Vents:
-
-
- Trap noise and vibration
- Maximize stability
- Keep blades cool for straight, accurate cuts
-
-
- Tri-Metal Shock Resistant Brazing:
-
-
- A three-metal brazing system
- Allows Cermet II teeth to withstand extreme impact for maximum durability
-
-
- Laser Cut Thin Kerf Design:
-
-
- Provides less resistance and heat build-up
- Ensures ease of cut, accuracy and long cutting life in cordless or corded saws
-
-
- Perma-SHIELD® coating:
-
-
- Protects the blade against gumming and corrosion
- Resists heat build-up
-
-
- Laser Cut Arbor reduces vibration and premature wear for accurate blade rotation when in use
- Circular saw blades create a controlled cutting action resulting in larger chip sizes:
-
-
- Generates less dust and airborne contaminates versus standard grinding discs
-
-
- Compatible with cordless and corded circular saws
- 20mm arbor fits:
-
-
- Evolution®, Jancy®, Morse®, and similar metal cutting saws
-
-
- Ideal For:
-
-
- Steel Studs/Channel
- Angle Iron
- EMT Conduit
- All-Thread with thicknesses of Studs & Tubing (Wall thickness 1/16″ (16 gauge) min 1/4″ max)
- Plates & Bars (Thickness 1/8″ (11 gauge) min 1/2″ max)
- Rods (Diameter 1/4″ min 1-1/2″ max)
-
-
Specifications:
- Diameter: 7″
- Arbor size: 20mm
- Hook angle: 0º
- Kerf: 0.075″
- Plate thickness: 0.063″
- No. of teeth: 48
- Tooth grind: TCG (Triple Chip Grind)
- Maximum RPM: 4,000
