DeWalt DCN930P1 20V MAX Brushless 30° Paper Tape Framing Nailer Kit

Description

DeWalt DCN930P1 20V MAX Brushless 30° Paper Tape Framing Nailer Kit

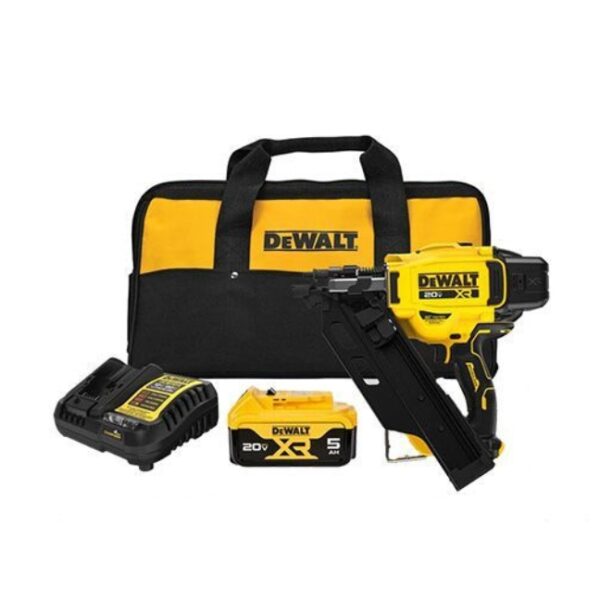

The DeWalt DCN930P1 20V MAX Brushless 30° Paper Tape Framing Nailer Kit includes:

• DCN930 Nailer
• DCB205 Battery
• DCB1104 Charger
• Belt Hook and Screw
• No Mar Tip
• Hex Wrench
• Manual
• Carry Bag

Features:

• Product no. DCN930P1
• Cordless Convenience:
  • • • Save up to 20 minutes daily in setup and clean-up time by switching from a pneumatic nailer
• Lightweight design: weighs only 8.65 lbs. (tool only)
• Nose specifically built for “Toe-Nailing” applications: Align, grip, and drive nails at aggressive angles
• Active Flywheel Technology in rapid sequential mode eliminates ramp-up time between shots
• Quick Setup: Requires no compressors or hoses
• Simplify Inventory Management:
  • • • Track and manage this Chip-Ready™ tool in the TOOL CONNECT™ system (Chip sold separately)
• Up to a 3-1/2″ nail capacity
• On-Site Serviceability: Limit maintenance delays with field serviceable springs and driver blade
• Optional DZN920 extended magazine: Holds 2 strips of nails – sold separately
• Install up to 530 sqft of subflooring per charge:
  • • • 32 nails per 3/4″ OSB subfloor 4ft x 8ft panel using DCB205 5Ah battery
• Complete up to 100 ft. of wall framing per charge:
  • • • 7 nails per SPF wall stud using DCB205 5Ah battery
• Powerful brushless motor to finish a wide-range of applications
• Drive nails up to 72% more sub-flush than previous generation:
  • • • 3.25″ smooth shank nail into laminated veneer lumber using DCB205 5Ah battery
• High- strength magnesium magazine for durability
• Applications:
  • • • Residential Framing
      • Sheathing
      • Subflooring
      • Setting Trusses
      • Punchout
      • Deck Building

Specifications:

• Power Source: Battery
• Battery Capacity: 5 Ah
• Magazine Angle: 30 Degree Paper Tape
• Nail Diameter Range: 0.113″ to 0.131″ (2.8mm to 3.3mm)
• Nail Length Range: 2″ to 3.5″ (50mm to 90mm)
• Magazine Capacity: Up to 55 Nails
• Magazine Loading: Bottom Loading
• Height: 13.2″ (335mm)
• Length: 13.9″ (353mm)
• Width: 5.6″ (142mm)
• Weight: 8.65 lbs (3.92 Kg)
