Description

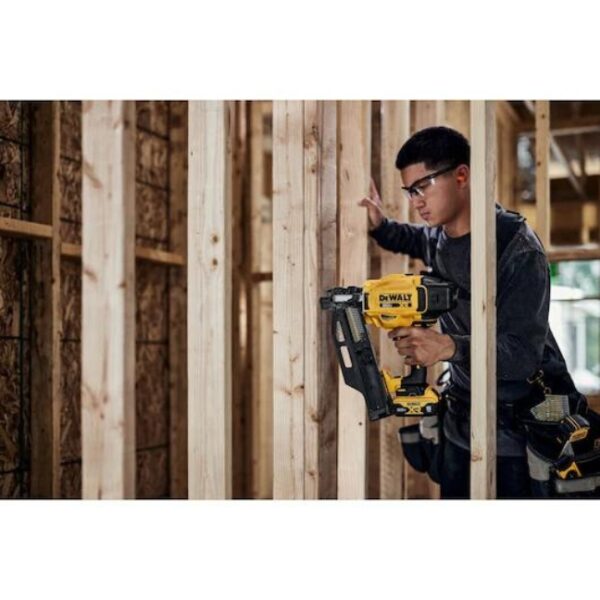

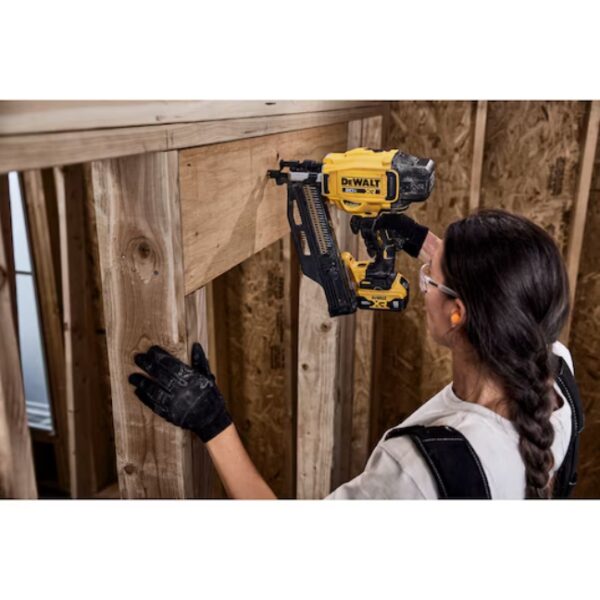

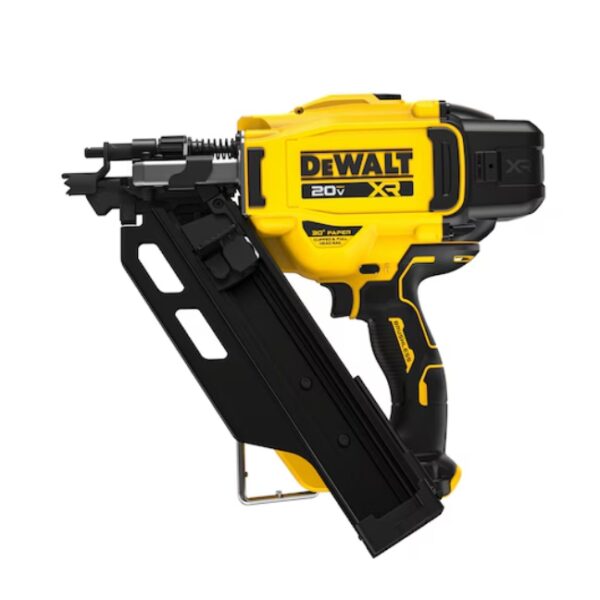

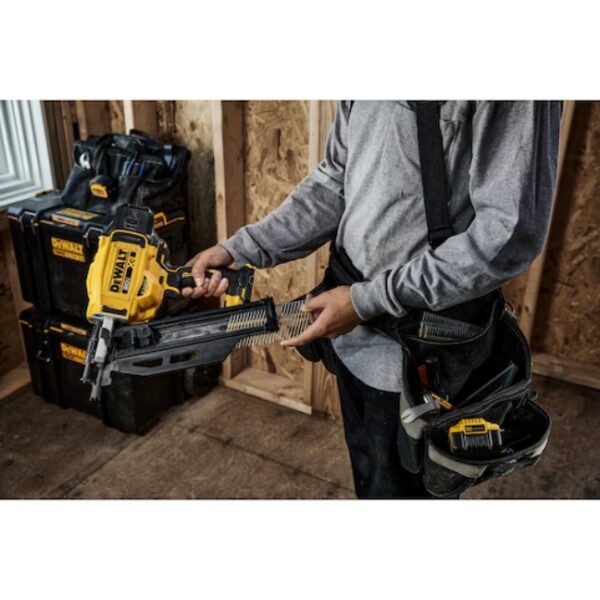

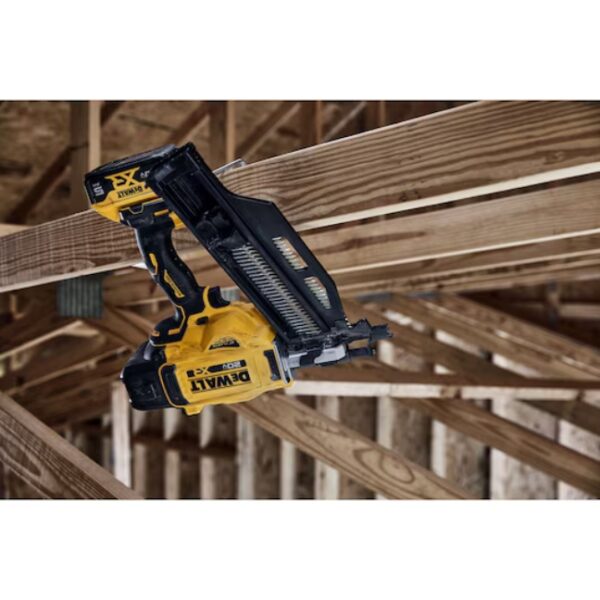

DeWalt DCN930B 20V MAX Brushless 30° Paper Tape Framing Nailer – Tool Only
The DeWalt DCN930B 20V MAX Brushless 30° Paper Tape Framing Nailer includes:
- Tool only – batteries and charger sold separately
- Belt Hook and Screw
- No Mar Tip
- Hex Wrench
- Manual
Features:
- Product no. DCN930B
- Cordless Convenience:
-
-
- Save up to 20 minutes daily in setup and clean-up time by switching from a pneumatic nailer
-
-
- Lightweight design: weighs only 8.65 lbs. (tool only)
- Nose specifically built for “Toe-Nailing” applications: Align, grip, and drive nails at aggressive angles
- Active Flywheel Technology in rapid sequential mode eliminates ramp-up time between shots
- Quick Setup: Requires no compressors or hoses
- Simplify Inventory Management:
-
-
- Track and manage this Chip-Ready™ tool in the TOOL CONNECT™ system (Chip sold separately)
-
-
- Up to a 3-1/2″ nail capacity
- On-Site Serviceability: Limit maintenance delays with field serviceable springs and driver blade
- Optional DZN920 extended magazine: Holds 2 strips of nails – sold separately
- Install up to 530 sqft of subflooring per charge:
-
-
- 32 nails per 3/4″ OSB subfloor 4ft x 8ft panel using DCB205 5Ah battery
-
-
- Complete up to 100 ft. of wall framing per charge:
-
-
- 7 nails per SPF wall stud using DCB205 5Ah battery
-
-
- Powerful brushless motor to finish a wide-range of applications
- Drive nails up to 72% more sub-flush than previous generation:
-
-
- 3.25″ smooth shank nail into laminated veneer lumber using DCB205 5Ah battery
-
-
- High- strength magnesium magazine for durability
- Applications:
-
-
- Residential Framing
- Sheathing
- Subflooring
- Setting Trusses
- Punchout
- Deck Building
-
-
Specifications:
- Power Source: Battery
- Battery Capacity: 5 Ah
- Magazine Angle: 30 Degree Paper Tape
- Nail Diameter Range: 0.113″ to 0.131″ (2.8mm to 3.3mm)
- Nail Length Range: 2″ to 3.5″ (50mm to 90mm)
- Magazine Capacity: Up to 55 Nails
- Magazine Loading: Bottom Loading
- Height: 13.2″ (335mm)
- Length: 13.9″ (353mm)
- Width: 5.6″ (142mm)
- Weight: 8.65 lbs (3.92 Kg)
