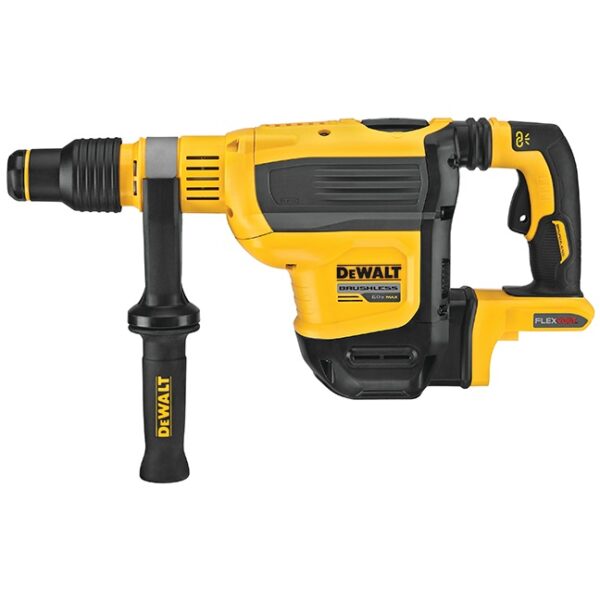

DeWalt DCH614B 60V MAX 1-3/4″ SDS MAX Brushless Combination Rotary Hammer

Description

DeWalt DCH614B 60V MAX 1-3/4″ SDS MAX Brushless Combination Rotary Hammer

The DeWalt DCH614B 60V MAX 1-3/4″ SDS MAX Brushless Combination Rotary Hammer includes:

• Tool only – batteries and charger sold separately
• Atomic Undercut Bit Drilling

Features:

• Product no. DCH614B
• 10.5 Joules of impact energy:
  • • • For fast drilling and chipping, even in the hardest concrete
• E-CLUTCH^® system:
  • • • Protects the user in bind-up situations by stopping the rotation of the bit
• WIRELESS TOOL CONTROL allows linking to the DCV585 60V MAX dust extractor for remote extractor activation
• SHOCKS Active Vibration Control^®:
  • • • Reduces vibration felt by the user at the handles, compared to rotary hammers without this feature
• 7-Position, variable-speed control for precision hole placement, chipping, and drilling with Atomic Undercut bits
• Brushless motor and durable German engineered mechanisms
• Constant-speed electronics allow the tool to maintain speed under load
• Tag Ready^™ to attach the DeWalt Tag^™ and track its location virtually anywhere via the Tool Connect^™ app
• Midweight design makes it ideally suited for:
  • • • Horizontal serial drilling for #5 – #8 rebar
      • Dry coring up to 4″
      • Chipping in any upper to lower wall and bushing applications

Specifications:

• Blows Per Minute: 1,450 to 2,900 BPM
• No load speed: 190 to 380 RPM
• Impact energy: 10.5 Joules
• Maximum diameter core: 4″
• Optimal concrete drilling: 5/8″ to 1-1/4″
• Height: 9.9″
• Length: 20.7″
• Weight: 15 lbs

Also available as a kit with batteries and charger: DCH614X2
