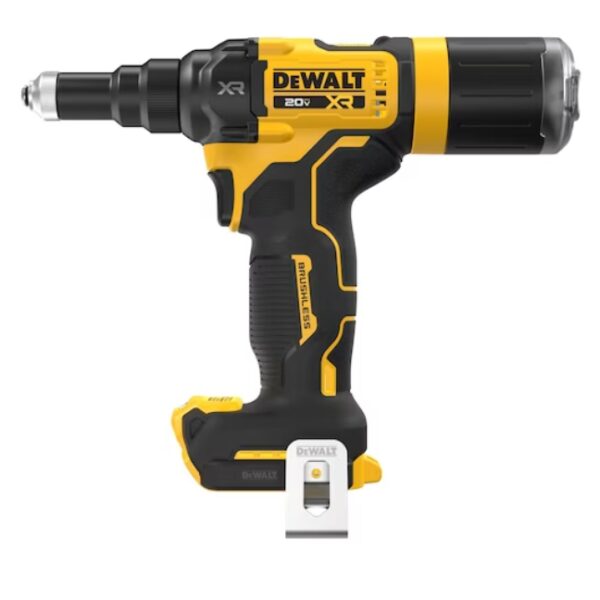

DeWalt DCF403B 20V MAX XR 3/16″ Brushless Rivet Tool – Tool Only

DeWalt DCF403B 20V MAX XR 3/16″ Brushless Rivet Tool – Tool Only

The DeWalt DCF403B 20V MAX XR 3/16″ Brushless Rivet Tool includes:

• Tool only – batteries and charger sold separately
• 4 Nose Pieces:
  • • • 3/32″, 1/8″, 5/32″, and 3/16″
• Replacement Jaw Set
• Belt Hook

Features:

• Product no. DCF403B
• Brushless Motor:
  • • • Delivers up to 2,100 ft-lbs of pulling force for fastening rivets including those made of stainless steel
• 800 Rivets per Charge to maximize productivity on the jobsite:
  • • • With 3/16″ stainless steel blind rivets and DCB203 battery (sold separately)

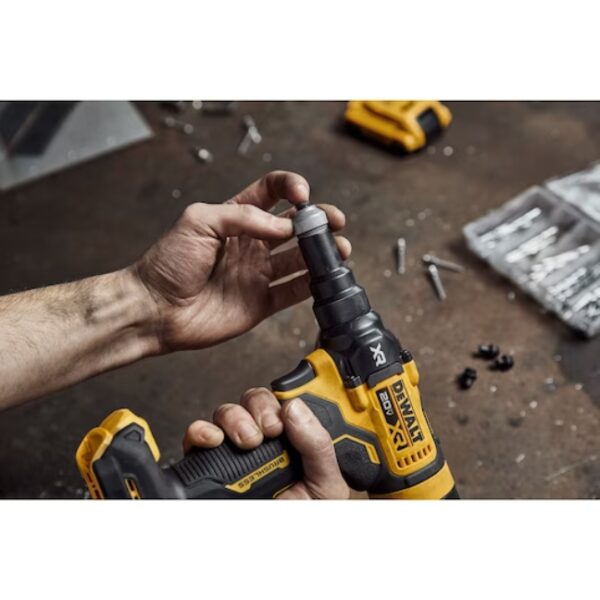

• Tool-free nose piece changes
• On-board nose piece storage
• Compatible with multiple size blind rivets including:
  • • • 3/32″, 1/8″, 5/32″, and 3/16″
• Capable of Pulling:
  • • • Aluminum, steel, and stainless steel blind rivets
• On-board Mandrel Collector:
  • • • Collects and stores loose mandrels
• 0.98″ Stroke Length: fastens rivets in one stroke
• Integrated LED work light for enhanced visibility in dimly lit areas

Specifications:

• Product Length: 10.5″
• Stroke Length: 0.98″
• Product Height: 8.6″
• Pulling Force: 2,100 ft-lbs
• Number of Pieces: 7
• Tool-Free Nose Piece Change: Yes
• Product Weight: 3.6 lbs
• Rivet Capacities:
  • • • Nose Piece #1: 3/32″ (2.4mm)
      • Nose Piece #2: 1/8″ (3.2mm)
      • Nose Piece #3: 5/32″ (4.0mm)
      • Nose Piece #4: 3/16″ (4.8mm)

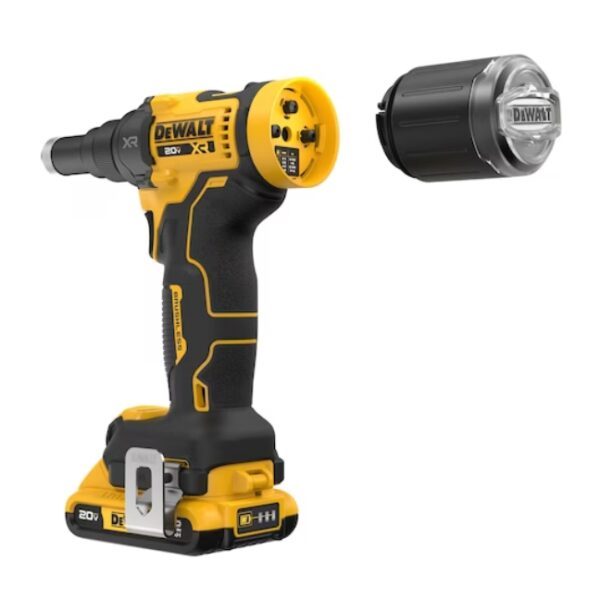

Also available as a kit with battery and charger: DCF403D1
