Description
Klein ET180 Digital Differential Manometer
The Klein ET180 Digital Differential Manometer includes:
- 6.56ft (2 m) x 1/8” (3 mm) Inside Diameter Silicon tubing
- 3 – AAA batteries
- Instruction Manual
- Storage pouch
Features:
- Product no. ET180

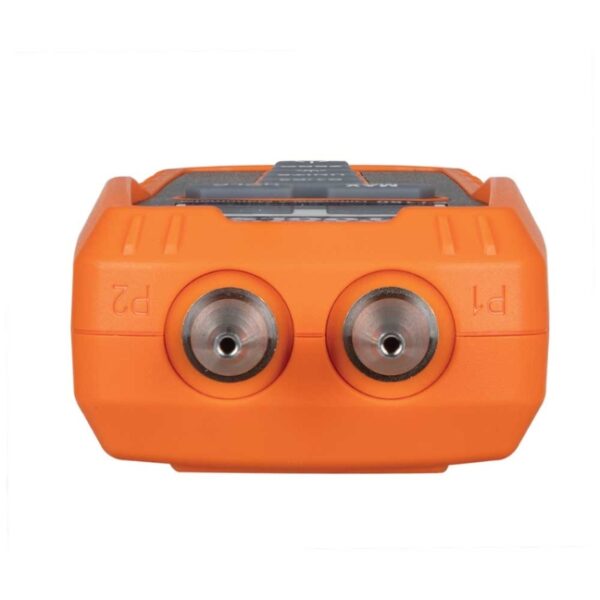

- Measures air and gas pressure for ports P1, P2, and differential
- Range of +/- 60 inH2O
- Full scale accuracy of +/-1.5%

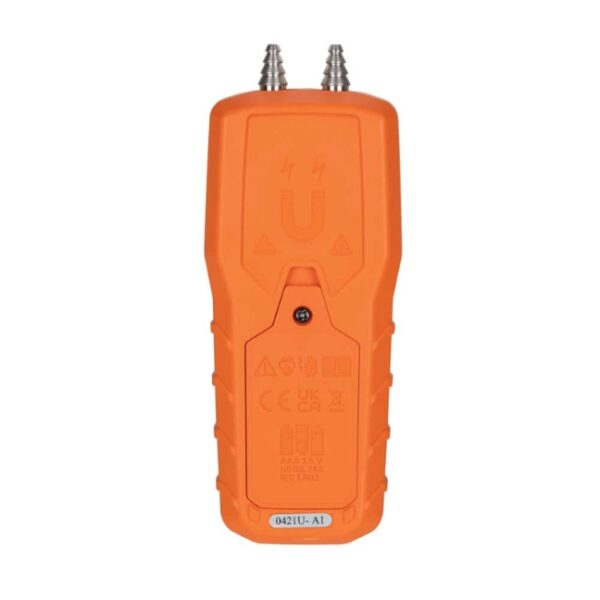

- Strong magnet on back for hands-free operation
- Units measured:
-
-
- inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O
-
-
- Calculates minimum, maximum and average values
- Large LCD is backlit for easy viewing in low light conditions
- Auto-power off feature conserves battery life
- Hold button locks current reading on the display
Specifications:
- Type: Differential Pressure
- Application: Measure Static and Differential Pressure
- Special Features: Magnet on Back of Housing
- Modes:
-
-
- P1, P2, Differential
-
-
- Pressure Measurement Range: +/- 60 inH2O
- Maximum Pressure (psi): 2.16 PSI
- Maximum Pressure Reading (wc): 60.0
- Minimum Pressure Reading (wc): -60.0
- Accuracy: +/-1.5% Full Scale
- Measurement Units:
-
-
- Bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, inH2O, ftH20, and cmH2O
-
-
- Number of Ports: 2
- Connector Type: Tapered Stainless Steel Ports from 1/8” to 5/15”
- Temperature Range: 32° to 122° F (0° to 50° C)
- Display: Backlit LCD
- Batteries: 3 x AAA
- Low Battery Indicator: Yes
- Auto-Power Off: Yes
- Material: ABS, Stainless Steel
- Length: 2.47” (6.3 cm)
- Height: 6.19” (15.7 cm)
- Width: 1.38” (3.5 cm)
- Standard: Conforms to EN 61326-1:2013; EN61326-2-3:2013; CE and UKCA Certified
- Weight: 7.2 oz (202 g)
Available Klein Specialty Testers include:
