Top Beam Clamp Small Mouth Zinc

$1.70$6.51

UOM: N/A SKU: N/A Category:

Description

Top Beam Clamp Small Mouth Zinc

Top Beam Clamp Small Mouth Zinc:

  • Made of zinc plated steel
  • Hardened steel cup point set screw
  • Complies with Manufacturers’ Standardization Society MSS SP-58 and SP-69 (Type 19)
  • Recommended for under roof installations with bar joist-type construction where joist thickness does not exceed 5/8″

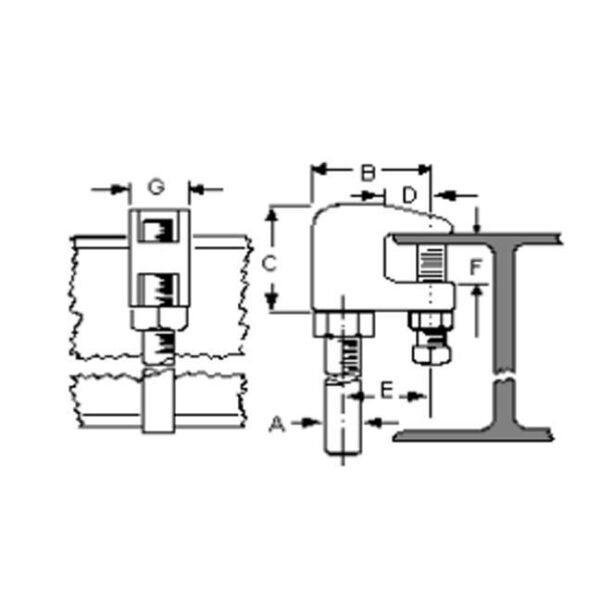

Rod Size SPECIFICATION DATA (inches) Maximum Recommended
A B C D E F G Pipe Size (inches)
Maximum Load   (lbs)
3/8 1-1/4 1-1/2 1/2 7/8 3/4 7/8 4 350
1/2 1-5/16 1-1/2 1/2 1 3/4 7/8 4 470
5/8 1-3/4 1-3/4 5/8 1-3/8 3/4 1-1/8 5 550
3/4 1-7/8 1-7/8 5/8 1-3/8 3/4 1-3/8 6 700
7/8 2-3/8 1-7/8 5/8 1-3/8 3/4 1-3/8 8 1000

Additional information

Weight N/A
Rod Size

3/8", 1/2", 5/8", 3/4", 7/8"
