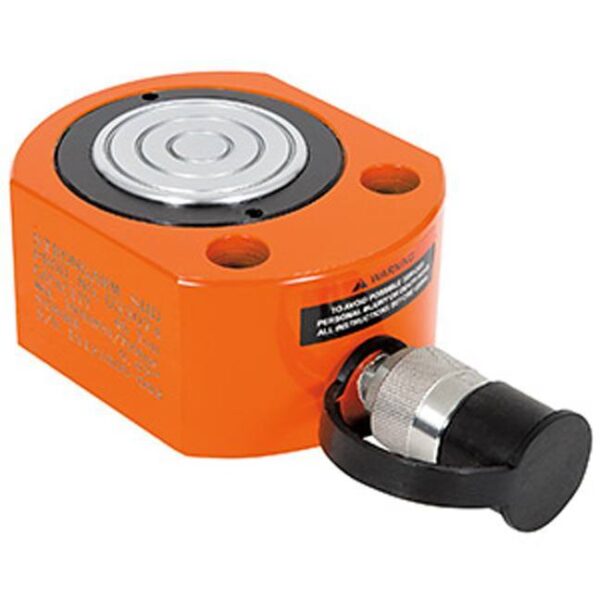

Strongarm 033074 50 Metric Ton Low Height Single Acting Cylinder

$2,135.24

Special Order Item (Ships within 3-5 Business Days)

Backorder

UOM: EA SKU: 033074 Categories: , UPC: 059629998267

Description

Strongarm 033074 50 Metric Ton Low Height Single Acting Cylinder

The Strongarm 033074 50 Metric Ton Low Height Single Acting Cylinder:

  •  Designed for use in confined areas
  • Complies with ASME B-30.1
  • Made of durable high strength alloy steel
  • Complete with mounting holes for fixture attachment
  • Features heavy duty plunger return springs
  • Grooved plunger end with threaded hole allows mounting of tilt saddles
  • Finished in baked enamel for superior corrosion resistance

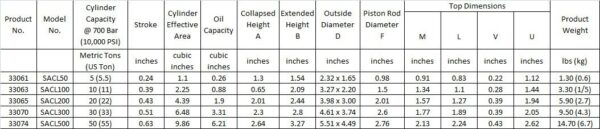

PRODUCT SELECTION CHART

Product
no.
Model
no.
Cylinder
Capacity
@ 700 Bar
(10,000 PSI)
Stroke Cylinder
Effective
Area
Oil
Capacity
Collapsed
Height
A
Extended
Height
B
Outside
Diameter
D
    Metric Ton
(US Ton)
inches cubic
inches
cubic
inches
inches inches inches
33061 SACL50 5 (5.5) 0.24 1.1 0.26 1.3 1.54 2.32 x 1.65
33063 SACL100 10 (11) 0.39 2.25 0.88 0.65 2.09 3.27 x 2.20
33065 SACL200 20 (22) 0.43 4.39 1.9 2.01 2.44 3.98 x 3.00
33070 SACL300 30 (33) 0.51 6.48 3.31 2.3 2.8 4.61 x 3.74
33074 SACL500 50 (55) 0.63 9.86 6.21 2.64 3.27 5.51 x 4.49



Product
No.
Model
No.
Piston Rod
Diameter
F

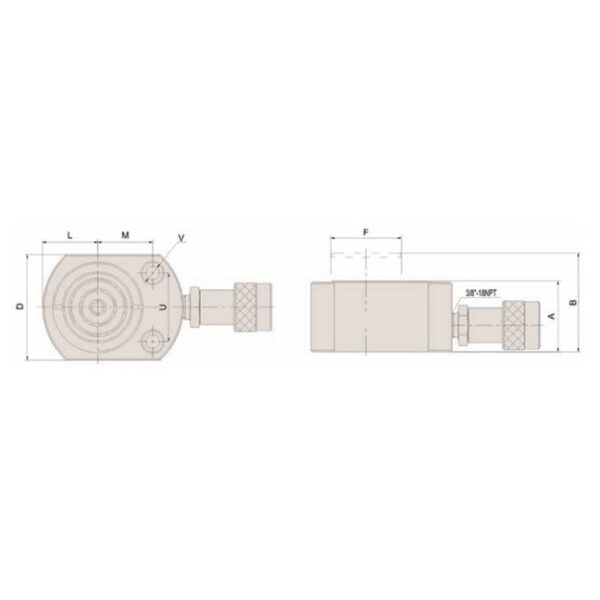

Top Dimensions Product
Weight
M L V U
    inches inches inches inches inches lbs (kg)
33061 SACL50 0.98 0.91 0.83 0.22 1.12 1.30 (0.6)
33063 SACL100 1.5 1.34 1.1 0.28 1.44 3.30 (1/5)
33065 SACL200 2.01 1.57 1.27 0.39 1.94 5.90 (2.7)
33070 SACL300 2.6 1.77 1.89 0.39 2.05 9.50 (4.3)
33074 SACL500 2.76 2.13 2.24 0.43 2.62 14.70 (6.7)



Additional information

Weight 14.7 lbs
