PLS PLS3RZ 3-Point Red Laser Level – Bare Tool

Description

PLS PLS3RZ 3-Point Red Laser Level – Bare Tool

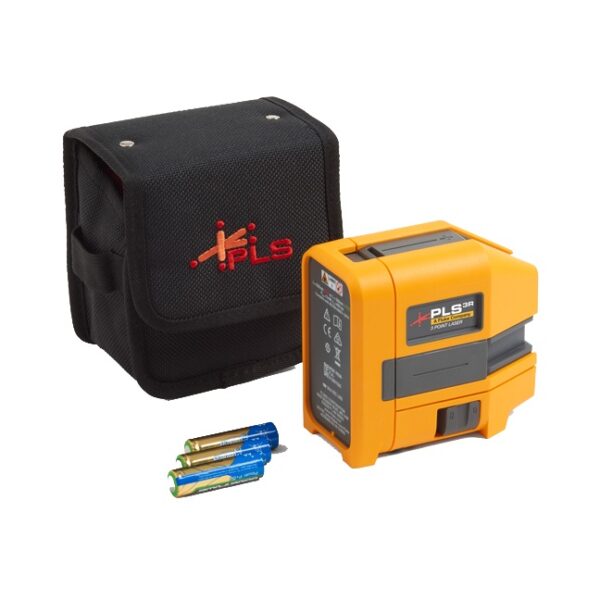

The PLS PLS3RZ 3-Point Red Laser Level – Bare Tool includes:

• PLS 3R Laser Level
• BP5 Alkaline Battery Pack
• Safety Sheet
• Quick Reference Guide
• Canvas Pouch

Features:

• Part number: 5009340
• SKU: PLS 3RZ
• Description: 3-Point Red Laser – Bare Tool
• Allows for fast, accurate layout of reference points
• Excellent for steel stud framing, HVAC installation, electrical and residential construction
• Includes floor stand and L-bracket for fast, easy overhang and centerline measurements

Specifications:

• Point laser direction: 90º up, down, forward
• Working range: ≤ 30 m (100 ft.)
• Accuracy: ≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.
• Laser leveling system: Automatic, Pendulum
• Laser leveling range: 4º
• Point laser diameter: ≤ 4 mm at 5 m
• Operating temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Batteries: 3 – Alkaline AA
• Laser Class: Class II
• Wavelength: 635 nm ± 5 nm
• Maximum Output Power: < 1 mW
• IP Rating: IP 54
• Operating Time: 30 hours continuous
• Dimensions: (HxWxL): 4.6″ x 2.5″ x 4.1″ (116 mm x 64 mm x 104 mm )
• Weight: 1.3 lbs (0.6 kg)

Available model variations:

• PLS3RZ 3-Point Red Laser Level
• PLS5RZ 5-Point Red Laser Level
• PLS6RZ 6-Point Red Laser Level
• PLS180RZ Cross-Line Red Laser Level
