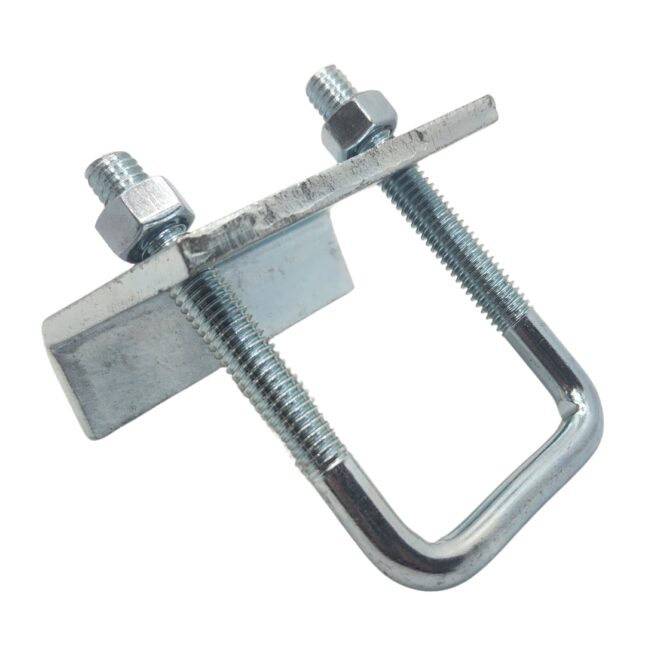

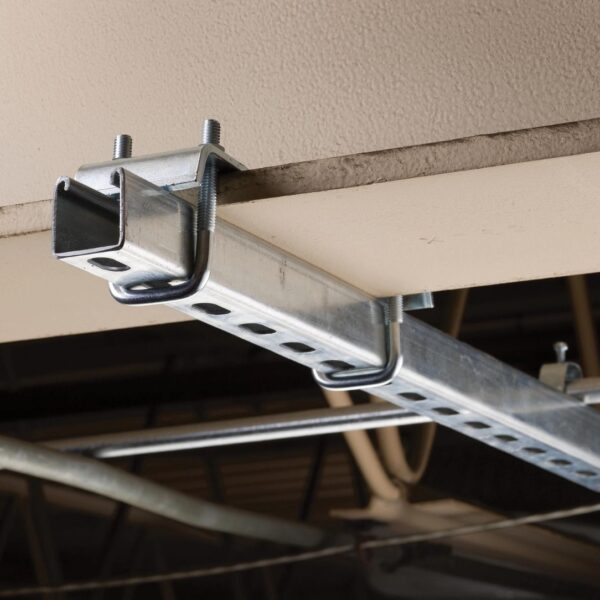

PeakSource Strut Beam Clamp

Description

PeakSource Strut Beam Clamp

PeakSource Strut Beam Clamp:

• Finish: Electro Galvanized

Available in the following options:

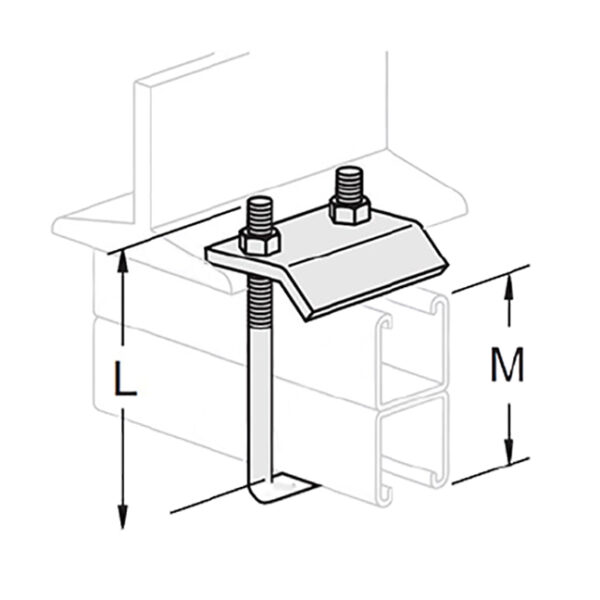

• Product no. S1501
• For use with 1-5/8″ wide x up to 1-5/8” deep single strut
• Finish: Electro Galvanized
• U-bolt:
  • • • Thread size: 3/8″-16
      • Dimensions: 3-1/2″ (L) x 2″
• Plate
  • • • Thickness: 1/4″
      • Width: 3″
      • Useable length: 2-1/4″

• Product no. S1502
• For use with double strut channel 1-5/8″ wide up to 3-1/4″ high
• Finish: Electro Galvanized
• U-bolt:
  • • • Thread size: 3/8″-16
      • Dimensions: 5″ (L) x 2″
• Plate
  • • • Thickness: 1/4″
      • Width: 3″
      • Useable length: 2-1/4″
