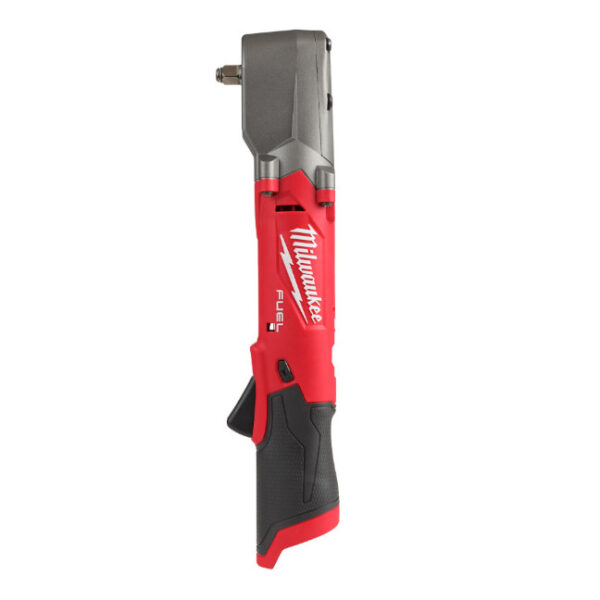

Milwaukee 2564-20 M12 FUEL 3/8″ Right Angle Impact Wrench- Friction Ring-Tool Only

(1 customer review)


Only 1 Available (can be backordered)

UOM: EA SKU: 2564-20 Categories: , , UPC: 045242559015


Milwaukee 2564-20 M12 FUEL 3/8″ Right Angle Impact Wrench- Friction Ring

The Milwaukee 2564-20 M12 FUEL 3/8″ Right Angle Impact Wrench includes:

  • Tool only – batteries and charger sold separately

Available as a kit with batteries and charger: 2564-22

1/2″ Drive models also available:

Optional Protective Boot sold separately: 49-16-2564 M12 FUEL Right Angle Impact Wrench Protective Boot

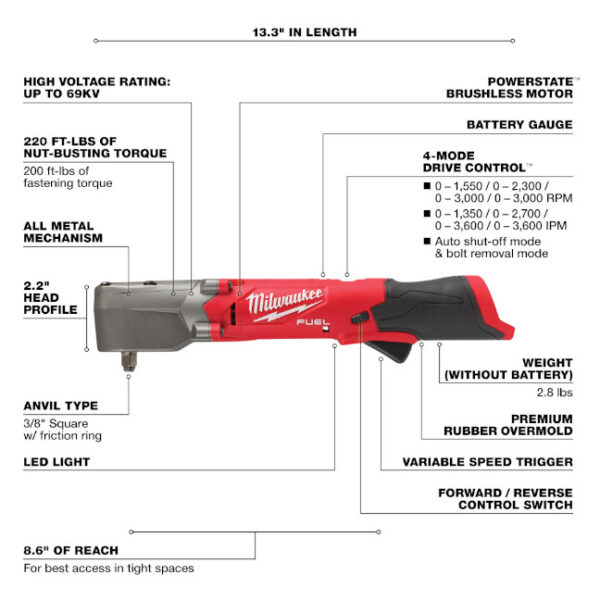

  • POWERSTATE™ Brushless Motor delivers up to 220 ft-lbs. of nut-busting torque
  • The most powerful cordless right angle impact wrench on the market
  • 2.8″ head profile design allows for more access in tight spaces
  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
  • Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
  • Long body profile of 14.17″ allows for more access in hard to reach spaces
  • REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
  • LED light to illuminate the work area
  • Premium rubber overmold withstands corrosive materials and provides increased comfort when in use
  • Works in up to to 69kV environments
  • Compatible with all M12™ batteries & chargers

4-Mode Drive Control:

  • Delivers unmatched control in various fastening and bolt removal applications
  • Modes 1-3 provide RPM and IPM adjustments for maximum precision
  • Mode 4 is equipped with Auto Shut-off in forward and Bolt Removal Mode in reverse

Friction Ring Anvil:

  • Ideal when making frequent socket changes
  • Easier to insert and remove sockets from tool


  • Battery voltage and chemistry: 12V Lithium Ion
  • Fastening Torque: 200 ft-lbs.
  • Breakaway Torque: 220 ft-lbs.
  • No load speed: 3,000 RPM
  • Impacts Per Minute 3,600 IPM
  • Head Profile Length: 2.8”
  • Length: 14.17” (w/ 2.0Ah Battery)
  • Weight: 3.23 lbs. (w/ 2.0Ah Battery)
  • Length: 13.28″
  • Height: 2.81″
  • Width: 2.32″
  • Weight: 2.83 lbs

Additional information

Weight 2 lbs
Brand Name

12V Power Tools

1 review for Milwaukee 2564-20 M12 FUEL 3/8″ Right Angle Impact Wrench- Friction Ring-Tool Only

  1. Ryan The Electrician

    This tool is just like the Stubby that came out, small. powerful (enough) lightweight and just plain handy to have for any trade!
    This impact is smaller than you think!
