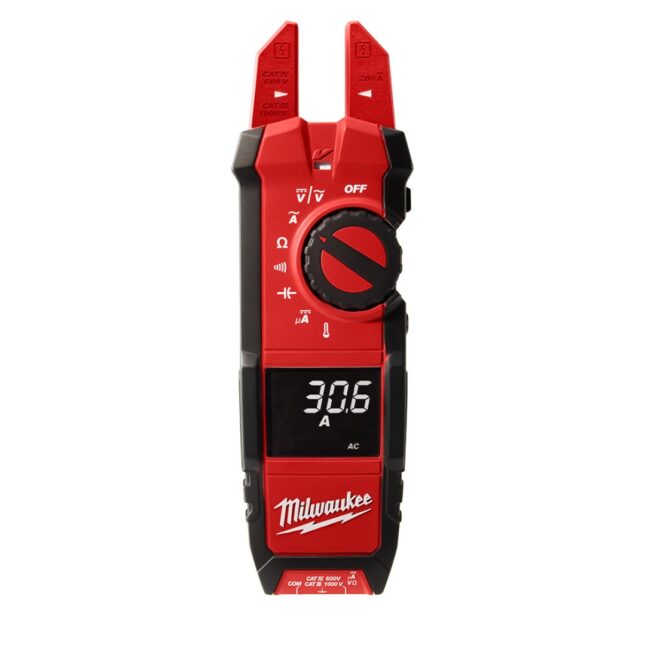

Milwaukee 2206-20NST Fork Meter for HVAC/R

Milwaukee 2206-20NST Fork Meter for HVACR


Available on backorder


Milwaukee 2206-20NST Fork Meter for HVAC/R

The Milwaukee 2206-20NST Fork Meter for HVAC/R includes:

  • NIST Certificate of Calibration with Data
  • Test lead set
  • Dual banana thermocouple
  • 2 – AA batteries

5 tools in 1

  1. Current measurement
  2. Temperature measurement
  3. Voltage measurement
  4. Voltage detection
  5. Task lighting

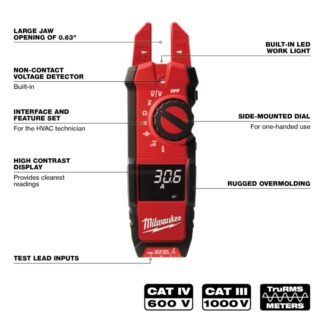

  • A heavy duty True-RMS electrical tester for professional residential, industrial and commercial applications
  • An NIST Certificate of Calibration with Data is included (needed by many organizations as proof of calibration with the date when NIST Calibration was performed)
  • Wide 0.63″ fork opening
  • Measures current up to 200 amps
  • Measures voltage range up to 1000 volts AC/DC
  • Thermocouple (dual banana) input for contact temperature measurement
  • Easy-read high contrast, white-on-black display with backlight
  • Durable over-molding increases user grip
  • Runs on AA alkaline batteries


  • Safety rating: CAT IV 600V / CAT III 1000V
  • Flame rectification: 600 μA DC
  • Microamps DC: 1,000 μA
  • Voltage AC/DC: 1000V
  • Resistance: 40MΩ
  • Continuity: Audible
  • Capacitance: 1,000 μF
  • Contact temperature range: -40°F to 752°F (-40°C to 400°C)
  • Switch type: Dial
  • Length: 8″
  • Tool warranty: 5 years

Also available:

Additional information

Weight 1.17 lbs
