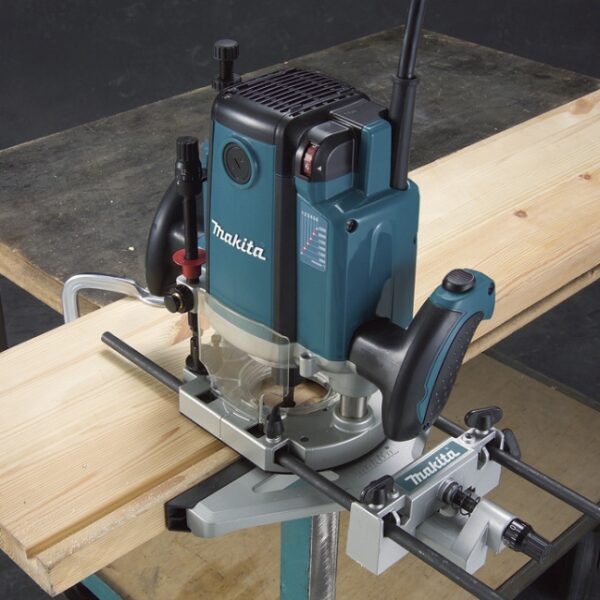

Makita RP2301FC Variable Speed Plunge Router

Makita RP2301FC Variable Speed Plunge Router


Available on backorder

UOM: EA SKU: RP2301FC Categories: , , , UPC: 088381099431


Makita RP2301FC Variable Speed Plunge Router

The Makita RP2301FC Variable Speed Plunge Router comes with:

  • Depth adjustment knob
  • 1/4″ collet sleeve
  • 1/2″ collet cone
  • Wrench


  • Electronic speed control maintains speed under heavy load
  • Extremely smooth plunge action with linear bearing slide mechanism
  • Larger armature ball bearings for longer tool life
  • Labyrinth (multi-channel) design of retainers and fan prevent motor contamination
  • Plunge depth is adjustable from the bottom of the router when mounted on a router table
  • Handle-located trigger switch with lock-on button
  • 3-stage depth adjustments are very useful when performing deep or repetitive cuts
  • Motor housing has 4 raised ribs on top to provide a stable platform during bit changes
  • Dual LED work lights with afterglow
  • Sub-base accommodates industry standard template guides


  • Collet capacity: 1/2″
  • Plunge capacity: 2-3/4″
  • No load speed: 9,000 to 22,000 RPM
  • Amps: 15.0A (120V)
  • Noise level: 87 dB
  • Overall height: 12-1/4″
  • Net weight: 13.4 lbs

Compatible with the following Makita guide rails and guide rail adaptor (sold separately):

  • 55″ Guide Rail – 194368-5
  • 75″ (1,900 mm) Guide Rail – 194925-9
  • 118″ Guide Rail – 194367-7
  • Router Guide Rail Adapter – 194579-2

Looking for router bits?  Click here.

Additional information

Weight 16 lbs
Brand Name

Corded Power Tools
