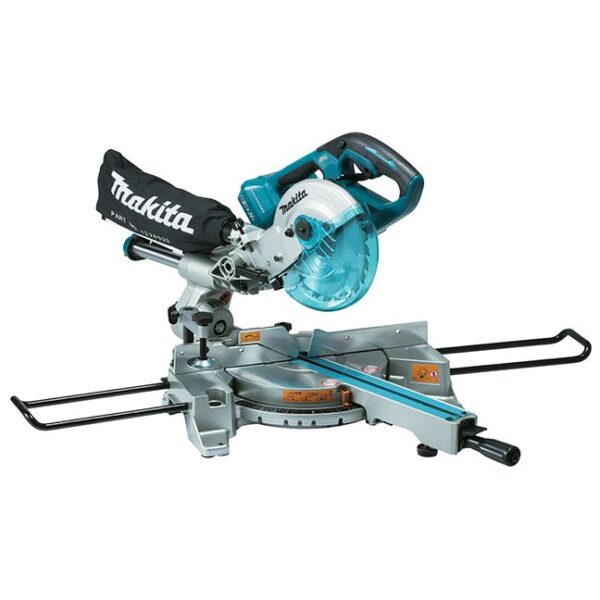

Makita DLS714Z 7-1/2″ 18Vx2 Brushless Dual Sliding Compound Mitre Saw

Makita DLS714Z 7-1/2" 18Vx2 Brushless Dual Sliding Compound Mitre Saw



UOM: EA SKU: DLS714Z Categories: , , , , UPC: 088381699594


Makita DLS714Z 7-1/2″ 18Vx2 Brushless Dual Sliding Compound Mitre Saw

The Makita DLS714Z Mitre Saw comes with:

  • Tool only – batteries and charger sold separately
  • 7-1/2″ C.T. Blade – 40 tooth
  • Dust bag
  • Hex wrench
  • Triangle rule
  • Vertical vise
  • Two holders

Features and Specifications:

  • Runs on 2 – 18V Li-Ion batteries
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • STAR battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • Dual sliding rail mechanism with 4 linear ball bearings
  • Rail mechanism increases rigidity to produce precise, adjustment free cuts right out of the box
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start gradually increases speed to eliminate start up shock
  • 2 stage safety switch prevents accidental startup for increased operator safety
  • Mitre capacity of 47o left or 57o right with positive stops at 0o, 15o, 22.5o, 30o & 45o
  • Bevel capacity of 45o left or 5o right
  • Comfortable ergonomic soft rubber grip absorbs vibration
  • Batteries: two 18V lithium ion
  • Blade diameter: 7-1/2″ (190 mm)
  • Arbor size: 5/8″ (15.9 mm)
  • No load speed: 5,700 RPM
  • Vibration level: 2.5 m/s²
  • Noise level: 88 dB(A)
  • Dimensions (L x W x H): 25-3/4″ x 17″ x 17-1/2″ (655 mm x 430 mm x 445 mm)
  • Net weight: 26.3 lbs (11.9 kg)

Additional information

Weight 26.3 lbs
