Description

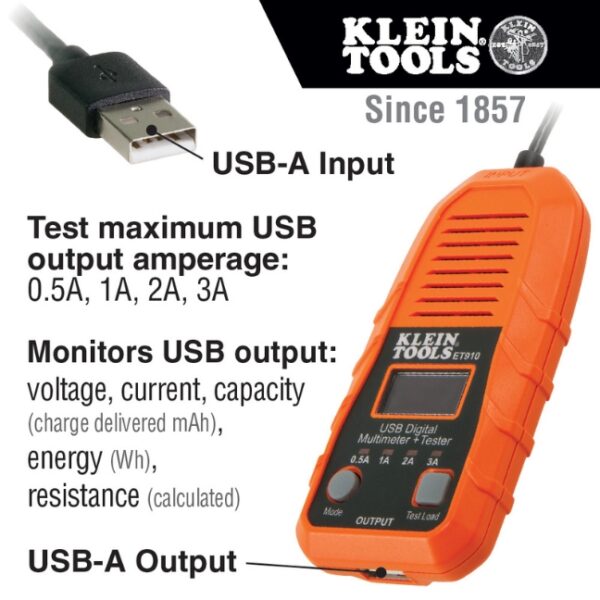

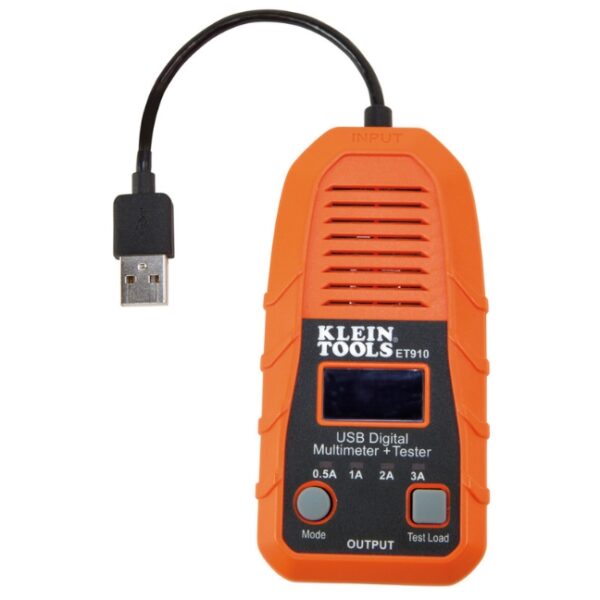

Klein ET910 USB Digital Meter And Tester (USB-A Type A)
The Klein ET910 USB Digital Meter And Tester (USB-A Type A):
Features:
- Product no. ET910
- 3 to 20V DC
- Current: 0.05 to 3A (monitoring mode)
- Built-in test loads of 0.5A, 1A, 2A, and 3A: no external test load required
- Continuously monitor up to 1000 hours of:
-
-
- Voltage
- Current
- Capacity/charge delivered
- Energy
- Resistance (calculated)
-
-
- Tests most common standard USB-A ports, including Qualcomm Quick Charge® ports
- Store and recall up to 10 readings
- Voltage and current overload detection
- Hi-resolution LCD for clear visibility in environments with low ambient lighting
- No batteries needed: powered by the USB port being tested
- Durable cable to allow easy access to hard-to-reach ports
- Rugged, pocket-sized, and light weight Klein industrial design stands up to jobsite demands
- Built to withstand a 6.6-Foot (2m) drop
Specifications:
- Type: USB-A (Type A)
- Application:
-
-
- USB Port Voltage
- Current
- Capacity
- Energy
- Resistance (Calculated)
- Max Current
-
-
- Special Features: Current Test Loads: 0.5A, 1A, 2A, 3A
- Voltage: 3 to 20V DC
- Current: 0.05 to 3A
- Capacity Used: 99,999mAh Maximum
- Energy Delivered: 999Wh Maximum
- Resistance: 400 ohms Maximum
- Elapsed Time: Up to 999 Hours, 59 Min, 59 Secs
- USB Compatibility: USB-A; Qualcomm Quick Charge® Compatible
- Drop Protection: 2 m (6.6′)
- Ingress Protection: IP20
- Display: LCD
- Material: Polymer
- Length: 4.31” (11 cm)
- Height: 0.98” (2.5 cm)
- Width: 2.15” (5.5 cm)
- Weight: 2.80 oz (79.4 g)
Available model variations – sold separately:
