Description

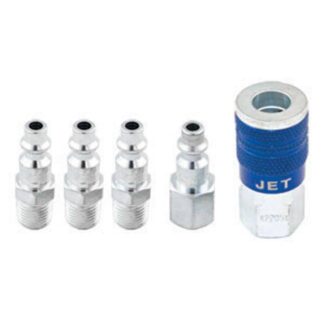

Jet 420091 5 PC ‘I/M’ Air Fitting Set – 1/4″ Body x 1/4″ NPT
The Jet 420091 5 PC ‘I/M’ Air Fitting Set – 1/4″ Body x 1/4″ NPT:
- Product no. 420091
- Model no. I5PCS
- Made of “zinc-plated” steel to prevent rust from moisture-rich environment
- Deep knurled socket sleeves on the couplers
- Couplers feature a “4-Ball-Positive-Locking” mechanism
- 100% air-tight seal
- Accidental disconnect protection
- Designed for general air service and pneumatic tool applications
- 1/4″ Body and 1/4″ NPT thread
- Maximum Working Pressure: 150 PSI
- Air Flow: 35 SCFM @ 100 PSI inlet with 10 PSI pressure drop
- Operating Temperature Range: -40º F to 225º F (-20º C to 107º C)
Identifying an “I/M” Type Plug:
- This type of plug has been adopted by all major manufacturers
- To identify this plug, look for the 3/16″ tip
- “V” shape, flat bottom ball groove
- Complies with ANSI T3.20.14 dimensions
JET “I/M” Type Air Fitting 1/4″ Body x 1/4″ Thread |
|||||
| Product no. | Model no. | Description | Thread | Packaging | Pieces |
| 420051 | ICF1414 | Coupler | 1/4″ NPT Female | Blister/Card | 1 |
| 422051 | ICF1414B | Coupler | 1/4″ NPT Female | Bulk | 10 |
| 420052 | ICM1414 | Coupler | 1/4″ NPT Male | Blister/Card | 1 |
| 420001 | IPM1414 | Plug | 1/4″ NPT Male | Blister/Card | 2 |
| 422001 | IPM1414B | Plug | 1/4″ NPT Male | Bulk | 20 |
| 420002 | IPF1414 | Plug | 1/4″ NPT Female | Blister/Card | 2 |
| 422002 | IPF1414B | Plug | 1/4″ NPT Female | Bulk | 20 |
| 420091 | I5PCS | 1 Coupler | 1/4″ NPT Female | Blister/Card | 5 |
| 3 Plugs | 1/4″ NPT Male | ||||
| 1 Plug | 1/4″ NPT Female | ||||
| 420092 | I2PCS | 1 Coupler | 1/4″ NPT Female | Blister/Card | 2 |
| 1 Plug | 1/4″ NPT Male | ||||
JET “I/M” Type Air Fitting 1/4″ Body x 3/8″ Thread |
|||||
| Product no. | Model no. | Description | Thread | Packaging | Pieces |
| 420151 | ICF1438 | Coupler | 3/8″ NPT Female | Blister/Card | 1 |
| 422152 | ICM1438 | Coupler | 3/8″ NPT Male | Blister/Card | 1 |
| 420101 | IPM1438 | Plug | 3/8″ NPT Male | Blister/Card | 2 |
| 420102 | IPF1438 | Plug | 3/8″ NPT Female | Blister/Card | 2 |
