Description

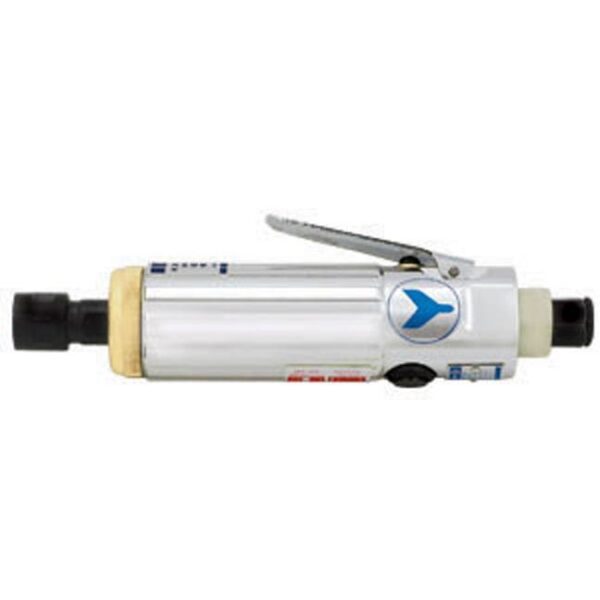

Jet 402116 DG149HD .9 HP 1/4″ Die Grinder
The Jet 402116 DG149HD .9 HP 1/4″ Die Grinder:
- Product no. 402116
- Model no. DG149HD
- Super heavy duty – Jet’s best high performance die grinder
- Ideal for extra heavy duty industrial applications
- Equipped with a powerful 0.9 HP motor
- Heavy duty Erickson collet maximizes strength and safety
- Rear exhaust directs air away from the work piece
- Two ball bearings on the motor
- Motor features finely honed alloy steel cylinder and 2 steel end plates for maximum performance and life
- Push button, self-locking lever throttle maximizes safety, control and comfort
- Screen on air inlet filters air line debris for longer motor life
- Delivers outstanding power, performance, durability and life
- 90 PSI working air pressure recommended for maximum performance
Looking for burrs for a die grinder? Click here.
JET 1/4″ 0.9 HP Die Grinder Comparison Chart |
|||
| Product no. | 402123 | 402124 | 402116 |
| Model no. | MG19HD | MG69HDE | MG6HDE |
| Motor HP | 0.9 | ||
| Collet Size | 1/4″ | ||
| Free Speed (RPM) | 20,000 | 18,000 | 18,000 |
| Overall Length | 6-1/2″ | 12.86″ | 7-1/16″ |
| Avg. Air Consumption (CFM) | 6 | ||
| Min. Hose Size | 3/8″ | ||
| Air Inlet (NPT) | 1/4″ | ||
| Sound Pressure (dBA) | 93 | 90 | 92 |
| Vibration (m/s²) | 2.5 | ||
| Weight | 1.45 lb (0.66 kg) | 2.95 lb (1.33 kg) | 1.6 lb (0.72 kg) |
JET 1/4″ Die Grinder Selection Chart |
||
| Standard Duty | Heavy Duty | Super Heavy Duty |
| Choose your JET Product no. / Model no. | ||
| 402108 / MDG144Z 0.3 HP Mini | 402113/ MG90HD 0.6 HP 90º Angle | 402116/ DG149HD 0.9 HP |
| 402109 / MDG1 0.3 HP Mini | 402114/ MG1HD 0.6 HP Mini | – |
| 402110/ MDG90 0.3 HP Mini 90º Angle | 402115/ MG6HDE 0.6 HP 6″ Extended | – |
| 402120/ MG90P 0.3 HP 90º Pistol Grip | 402118/ DG115HD 0.3 HP 115º Angle | – |
| – | 402121/ MG3HDE 0.6 HP 3″ Extended | – |
| – | 402123 / MG19HD 0.9 HP | – |
| – | 402124 / MG69HDE 0.9 HP 6″ Extended | – |
