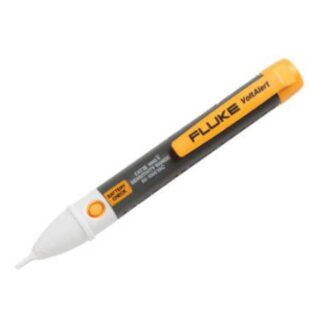

Fluke 3807928 2AC/90-1000V ACV Detector 90-1000V

$39.00

Model: 2AC/90-1000

In stock (can be backordered)

SKU: 3807928 Categories: , ,

Description

Fluke 3807928 2AC/90-1000V ACV Detector 90-1000V

The Fluke 3807928 2AC/90-1000V ACV Detector 90-1000V:

  • Part of the Fluke VoltAlert™ family of non-contact voltage testers

Features:

  • Voltage detection from 90 to 1000 V AC
  • Suitable for a wide range of residential, commercial and industrial needs
  • Always On: Special low power circuitry sustains battery life
  • CAT IV 1000 V overvoltage rated product for best in class user protection
  • Expanded range: 90 V AC to 1000 V AC
  • Integrated clip design, optimized for pocket storage
  • Powered by two AAA batteries (included)
  • Fluke ruggedness and reliability
  • Two-year warranty

Battery Check Button:

  • Ensures good condition of battery
  • Optional usage
  • For convenience only
  • Not intended as a substitute for checking the unit on a known live source before and after use

Operating Principles:

  • Senses the steady state electrostatic field produced by AC voltage through insulation
  • Does not require contact to the bare conductor
  • Red glow at the tip indicates the presence of voltage

Safety Compliance:

  • IEC 61010-1:2001
  • UL 61010-1 (2nd ed.)
  • CAN/CSA-C22.2 No. 61010-1-04
  • ISA-82.02.01 Pollution Degree 2

EMC Compliance:

  • IEC 61326-1:2006

Specifications:

  • Operating: 90 V AC to 1000 V AC, CAT IV 1000 V rated
  • Temperature (Operating and Storage): -10°C to 50°C (-14°F to 122°F)
  • Altitude: 2000 m (CAT IV 1000 V)
  • Battery life: Typical battery life of greater than one year

Operating Humidity Ranges:

  • 0°C to 30°C: 0% to 95%
  • 30°C to 40°C: 0% to 75%
  • 40°C to 55°C: 0% to 45%

Click here for more Fluke brand products

Additional information

Weight 1 lbs
