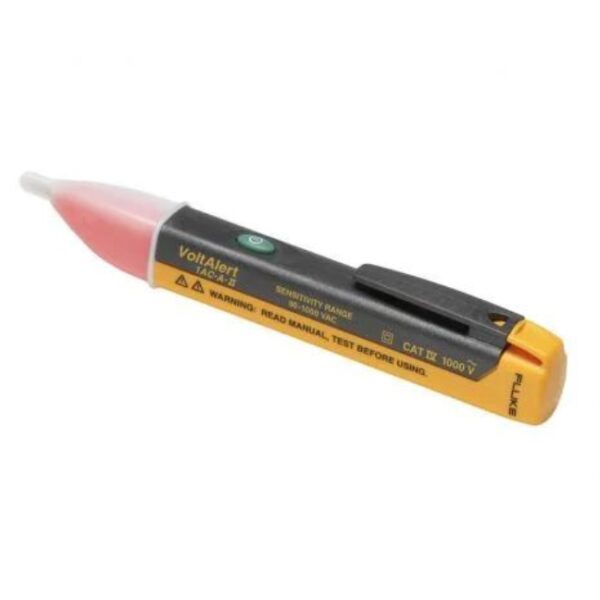

Fluke 2432932 1AC II Non-Contact Voltage Tester

Description

Fluke 2432932 1AC II Non-Contact Voltage Tester

The Fluke 2432932 1AC II Non-Contact Voltage Tester features:

• Model no. 1AC II
• Item no. 2432932
• Voltbeat™ technology and continuous self-test — so you always know it’s working
• Upon detection, tip glows and beeper sounds
• CAT IV 1000 V for added protection
• Expanded range: 90 V to 1000 V AC or 200 V to 1000 V AC depending on model
• 20 V to 90 V AC control circuit model also available
• Two-year warranty

Operating Principles:

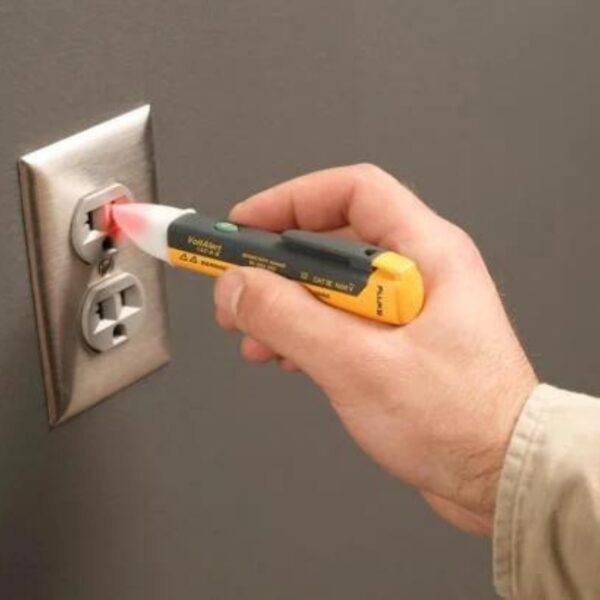

• Senses the steady state electrostatic field produced by AC voltage through insulation
• Does not require contact with the bare conductor
• Red glow at the tip and a beeping noise (if not switched OFF) indicate the presence of voltage

Agency Approvals:

• Canadian and US Standards
• European Union directives
• Australian standards

Safety:

• IEC 61010-1
• Pollution Degree 2
• IEC 61010-2-030: CAT IV 1000 V

EMC Compliance:

• IEC 61326-1: Portable

Specifications:

• Voltage Sensing Ranges: Nominally 90 V AC to 1000 V AC, CAT IV 1000 V rated
• Detector tip style: Flat tip
• Light source: One high intensity red LED
• IP Rating: IP 40
• Temperature (Operating and Storage): -10°C to 50°C (-14°F to 122°F)
• Operating Altitude: 3000 m
• Batteries: Two AAA alkaline batteries (included)
• Battery life: Typical battery life of greater than one year
• Product does not respond to random electrostatic discharge.

Operating Humidity Ranges:

• 0°C to 30°C: 0% to 95%
• 30°C to 40°C: 0% to 75%
• 40°C to 55°C: 0% to 45%
