DeWalt DWS713 15 Amp Corded 10″ Single Bevel Compound Mitre Saw

Description

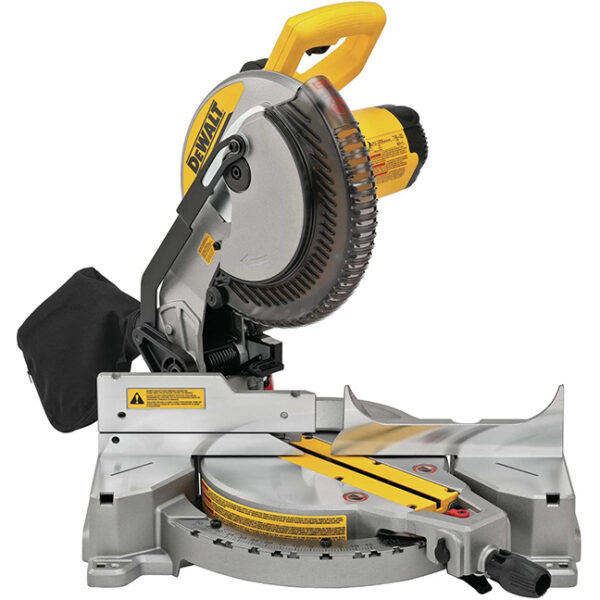

DeWalt DWS713 15 Amp Corded 10″ Single Bevel Compound Mitre Saw

The DeWalt DWS713 15 Amp Corded 10″ Single Bevel Compound Mitre Saw comes with:

• DeWalt 10″ (254 mm) diameter saw blade
• 6 mm Hex wrench
• Dust bag
• Mitre lock knob
• Vertical material clamp
• Instruction manual

Features:

• Product no. DWS713
• Powered by a 15 Amp motor to drive 4,000 RPM
• Delivers extended power and durability
• Stainless-steel mitre detent plate and cam mitre lock:
  • • • Provide repeatable accuracy and durability with easy adjustments
• Tall sliding fences support:
  • • • 4-1/2″ of crown molding vertically nested
• Lightweight design and built-in carry handle are ideal for portability
• Typical Applications:
  • • • Hardwood Flooring
      • Dimensional Lumber
      • Baseboard
      • Window and Door Casing
      • Moldings
      • Cabinet Work

Specifications:

• Power: Corded
• Blade diameter: 10″ (254 mm)
• Amperage: 15.0 amps
• Power output: 1,600 watts
• No load speed: 5,000 RPM
• Weight: 31 lbs
• Capacity of cut:
  • • • 50° mitre left and right
      • 48° bevel left: 3° right
      • Baseboard vertically against fence:
        • • • Max. Height 4.25″ (108 mm)
            • Max. Width 0.625″ (16 mm)
      • 0° mitre:
        • • • Max. Height 3.5″ (89 mm) – Resulting Width 3.5″ (89 mm)
            • Max. Width 6.1″ (155 mm) – Resulting Height 1.25″ (32 mm)
      • 45° mitre:
        • • • Max. Height 3.5″ (89 mm) – Resulting Width 2.4″ (61 mm)
            • Max. Width 4.2″ (107 mm)-  Resulting Height 1.25″ (32 mm)
      • 45° bevel:
        • • • Max. Height 2.3″ (58 mm) – Resulting Width 3.5″ (89 mm)
            • Max. Width 6.1″ (155 mm) – Resulting Height 0.75″ (19 mm)
      • 31.6° mitre and 33.9° bevel:
        • • • Max. Width 5.25″ (133 mm) – Resulting Height 0.9″ (23 mm)

Also available: DWS715 12″ Single-Bevel Compound Mitre Saw
