Milwaukee 2236-20 Clamp Meter for HVAC/R

Description

Milwaukee 2236-20 Clamp Meter for HVAC/R

The Milwaukee 2236-20 Clamp Meter for HVAC/R includes:

• Electrical test lead set
• Dual banana thermocouple
• 2 – AA batteries

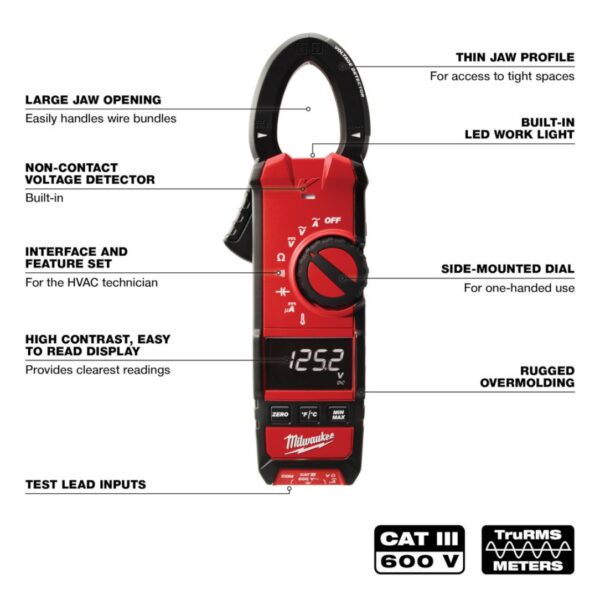

Features:

• Product no. 2236-20
• A True-RMS electrical tester for accurate measurement in all applications
• Wide 1.30″ fork opening
• Thin jaw profile makes taking measurements in panels or in bundles easier
• Measures current up to 600 amps
• Measures voltage range up to 600 volts AC/DC
• Thermocouple (dual banana) input for contact temperature measurement
• Built-in voltage detector
• LED job light
• Easy-read high contrast, white-on-black display with backlight
• Durable over-molding increases user grip
• Runs on AA alkaline batteries

Specifications:

• Safety rating: CAT III 600V
• Flame rectification: 600 μA DC
• Microamps DC: 600 μA
• Voltage AC/DC: 600V
• Resistance: 6kΩ
• Continuity: Yes
• Capacitance: Yes
• Contact temperature range: -40°F to 752°F (-40°C to 400°C)
• Indication: Visual (for NCVD)
• Switch type: Dial
• Length: 9-1/2”
• Tool warranty: 5 years
