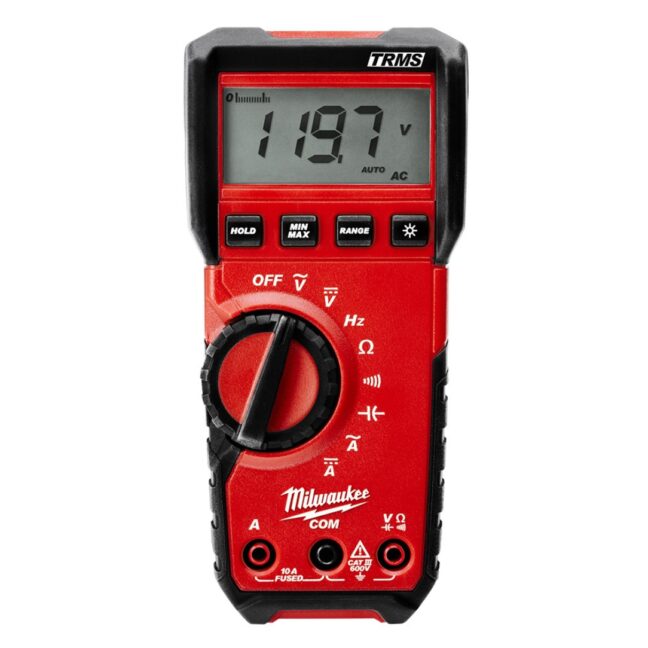

Milwaukee 2216-20NST Digital Multimeter

Milwaukee 2216-20NST Digital Multimeter


Special Order Item (Ships within 7-10 Business Days)

Available on backorder

SKU: 2216-20NST Categories: , ,

Product Description

Milwaukee 2216-20NST Digital Multimeter

  • A True-RMS electrical tester for accurate measurement in all applications
  • An NIST Certificate of Calibration with Data is included (needed by many organizations as proof of calibration with the date when NIST Calibration was performed)
  • Measures current up to 10 amps AC/DC
  • Measures wide voltage range up to 600 volts AC/DC
  • Easy-read high contrast, white-on-black LCD display with backlight
  • Durable over-molding increases user grip
  • Runs on AA alkaline batteries
  • AC Voltage range: 6.00mV to 600V
  • DC Voltage range: 600.0mV to 600V
  • Current: 10.00A AC/DC
  • Safety rating: CAT III 600V
  • Frequency: 2.00 Hz to 50.00 kHz
  • Resistance: 40 MΩ
  • Continuity: Audible (detected at less than 30 ohms)
  • Capacitance: 1,000μF
  • HOLD/MIN/MAX: yes
  • Bar graph readout: yes
  • Accessory attachment: Magnetic meter holder
  • Calibration needed: Yes – calibration service recommended once a year
  • Switch type: Dial
  • Length: 6-1/2″”
  • Tool warranty: 5 years


  • 1 – NIST Certificate of Calibration with Data
  • 1 – Electrical test lead set
  • 2 – AA batteries

Additional Information

Weight 1.3 lbs
Brand Name

Milwaukee Tools
